Gruppo di prodotti 15238037

lock SHB NL SS

Ex WGR n.:

1785

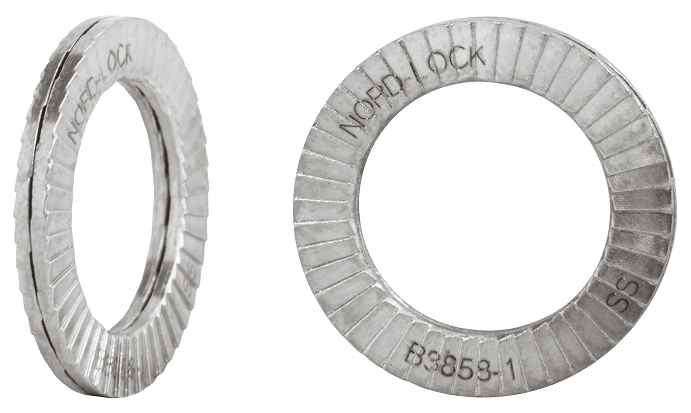

Articolo immagine lock SHB NL SS

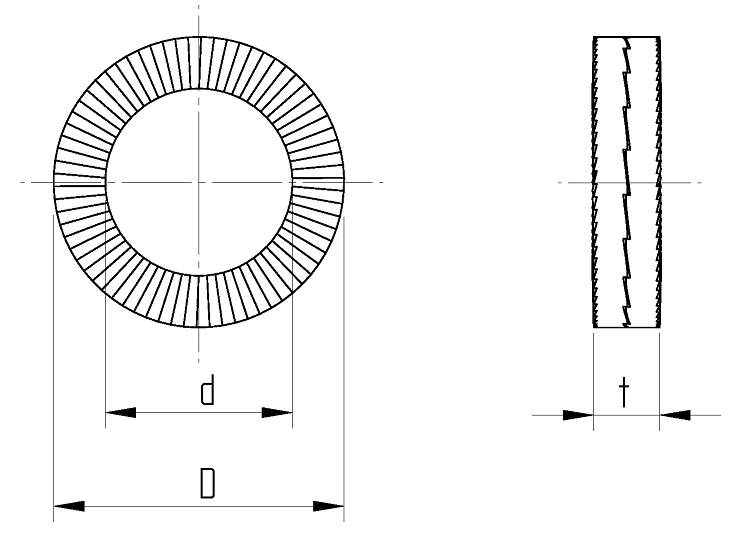

Schizzo lock SHB NL SS

Schizzo 2 lock SHB NL SS

Produktfilter

inner diameter

Alle 5.4 mm 6.5 mm 8.7 mm 10.7 mm 13.0 mm 17.0 mm 21.4 mm

outer diameter

Alle 9.0 mm 10.8 mm 13.5 mm 16.6 mm 19.5 mm 25.4 mm 30.7 mm

nominal diameter

Alle 5.0 mm 6.0 mm 8.0 mm 10.0 mm 12.0 mm 16.0 mm 20.0 mm

size

Alle 5,4X9X2,2 6,5X10,8X2,2 8,7X13,5X2 10,7X16,6X2 13X19,5X2 17X25,4X3 21,4X30,7X3

thickness

Alle 2.2 mm 2.0 mm 3.0 mm

Numero di materiale	inner diameter	outer diameter	nominal diameter	size	material	Imballaggio	Quantità
10023614	5.4 mm	9.0 mm	5.0 mm	5,4X9X2,2	stainless steel A4	STD 200
10023618	6.5 mm	10.8 mm	6.0 mm	6,5X10,8X2,2	stainless steel A4	STD 200
10023623	8.7 mm	13.5 mm	8.0 mm	8,7X13,5X2	stainless steel A4	STD 200
10023629	10.7 mm	16.6 mm	10.0 mm	10,7X16,6X2	stainless steel A4	STD 200
10023634	13.0 mm	19.5 mm	12.0 mm	13X19,5X2	stainless steel A4	STD 200
10023638	17.0 mm	25.4 mm	16.0 mm	17X25,4X3	stainless steel A4	STD 100
10023644	21.4 mm	30.7 mm	20.0 mm	21,4X30,7X3	stainless steel A4	STD 100
