Gruppo di prodotti 15207009

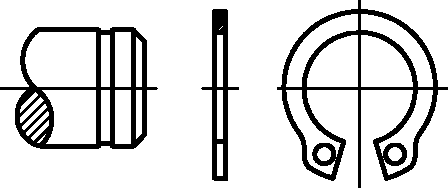

Circlip f.shafts

Standard:	DIN 471
Ex WGR n.:	3339

Produktfilter

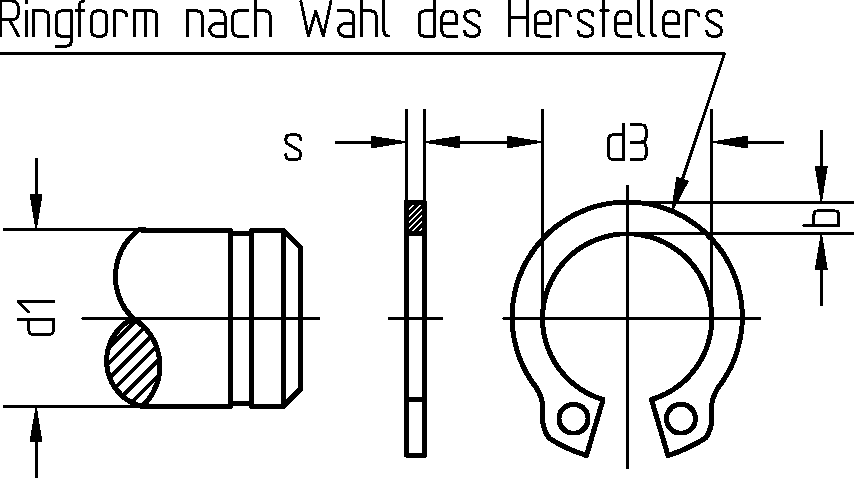

Numero di materiale	inner diameter	outer diameter	nominal diameter	thickness	material	Imballaggio
10066125	5.6 mm	5.9 mm	6.0 mm	0.7 mm	stainless steel A2	STD 200
10066135	7.4 mm	14.7 mm	8.0 mm	0.8 mm	stainless steel A2	STD 100
10066150	9.3 mm	17.0 mm	10.0 mm	1.0 mm	stainless steel A2	STD 100
10066165	11.0 mm	19.0 mm	12.0 mm	1.0 mm	stainless steel A2	STD 1000
10066185	13.8 mm	22.6 mm	15.0 mm	1.0 mm	stainless steel A2	STD 200
10066195	14.7 mm	23.8 mm	16.0 mm	1.0 mm	stainless steel A2	STD 100
10066205	15.7 mm	25.0 mm	17.0 mm	1.0 mm	stainless steel A2	STD 100
10066208	16.5 mm	26.2 mm	18.0 mm	1.2 mm	stainless steel A2	STD 100
10066217	18.5 mm	28.4 mm	20.0 mm	1.2 mm	stainless steel A2	STD 100
10066231	22.2 mm	33.2 mm	24.0 mm	1.2 mm	stainless steel A2	STD 100
10066235	23.2 mm	34.2 mm	25.0 mm	1.2 mm	stainless steel A2	STD 100
10066249	27.9 mm	40.5 mm	30.0 mm	1.5 mm	stainless steel A2	STD 50
10066276	36.5 mm	52.6 mm	40.0 mm	1.75 mm	stainless steel A2	STD 25
10066289	45.8 mm	64.5 mm	50.0 mm	2.0 mm	stainless steel A2	STD 10
