Gruppo di prodotti 14093001

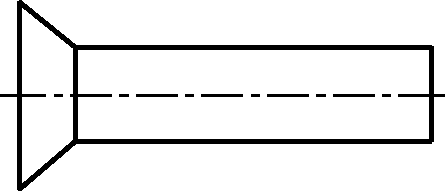

pop rivet

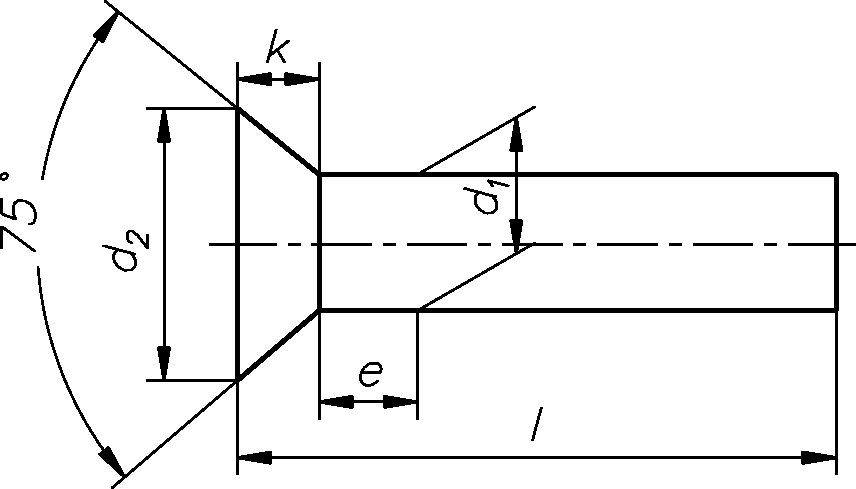

Standard:	DIN 661
Ex WGR n.:	1574

Produktfilter

Numero di materiale	nominal diameter	size	material of sleeve	type of execution	head shape	Imballaggio
10086525	3.0 mm	3X6	steel	solid rivet	countersunk head	STD 2000
10086531	3.0 mm	3X8	steel	solid rivet	countersunk head	STD 2000
10086535	3.0 mm	3X10	steel	solid rivet	countersunk head	STD 2000
10086542	3.0 mm	3X12	steel	solid rivet	countersunk head	STD 2000
10086547	3.0 mm	3X16	steel	solid rivet	countersunk head	STD 2000
10086553	3.0 mm	3X20	steel	solid rivet	countersunk head	STD 2000
10086557	4.0 mm	4X6	steel	solid rivet	countersunk head	STD 2000
10086560	4.0 mm	4X8	steel	solid rivet	countersunk head	STD 2000
10086564	4.0 mm	4X10	steel	solid rivet	countersunk head	STD 2000
10086572	4.0 mm	4X12	steel	solid rivet	countersunk head	STD 2000
10086576	4.0 mm	4X16	steel	solid rivet	countersunk head	STD 2000
10086582	4.0 mm	4X20	steel	solid rivet	countersunk head	STD 1000
10086592	4.0 mm	4X25	steel	solid rivet	countersunk head	STD 1000
10086597	4.0 mm	4X30	steel	solid rivet	countersunk head	STD 1000
10086601	5.0 mm	5X10	steel	solid rivet	countersunk head	STD 1000
10086609	5.0 mm	5X12	steel	solid rivet	countersunk head	STD 1000
10086614	5.0 mm	5X16	steel	solid rivet	countersunk head	STD 1000
10086618	5.0 mm	5X20	steel	solid rivet	countersunk head	STD 1000
10086630	5.0 mm	5X25	steel	solid rivet	countersunk head	STD 500
10086635	5.0 mm	5X30	steel	solid rivet	countersunk head	STD 500
10086640	5.0 mm	5X35	steel	solid rivet	countersunk head	STD 500
10086643	5.0 mm	5X40	steel	solid rivet	countersunk head	STD 500
10086649	5.0 mm	5X50	steel	solid rivet	countersunk head	STD 250
10086653	6.0 mm	6X10	steel	solid rivet	countersunk head	STD 1000
10086661	6.0 mm	6X12	steel	solid rivet	countersunk head	STD 1000
10086667	6.0 mm	6X16	steel	solid rivet	countersunk head	STD 1000
10086680	6.0 mm	6X20	steel	solid rivet	countersunk head	STD 500
10086684	6.0 mm	6X25	steel	solid rivet	countersunk head	STD 500
10086692	6.0 mm	6X30	steel	solid rivet	countersunk head	STD 500
10086698	6.0 mm	6X35	steel	solid rivet	countersunk head	STD 500
10086704	6.0 mm	6X40	steel	solid rivet	countersunk head	STD 500
10086709	6.0 mm	6X45	steel	solid rivet	countersunk head	STD 250
10086712	6.0 mm	6X50	steel	solid rivet	countersunk head	STD 250
10086716	8.0 mm	8X16	steel	solid rivet	countersunk head	STD 500
10086724	8.0 mm	8X20	steel	solid rivet	countersunk head	STD 500
10086729	8.0 mm	8X25	steel	solid rivet	countersunk head	STD 250
10086733	8.0 mm	8X30	steel	solid rivet	countersunk head	STD 250
10086739	8.0 mm	8X35	steel	solid rivet	countersunk head	STD 250
10086743	8.0 mm	8X40	steel	solid rivet	countersunk head	STD 250
10086747	8.0 mm	8X50	steel	solid rivet	countersunk head	STD 100
