Gruppo di prodotti 15222021

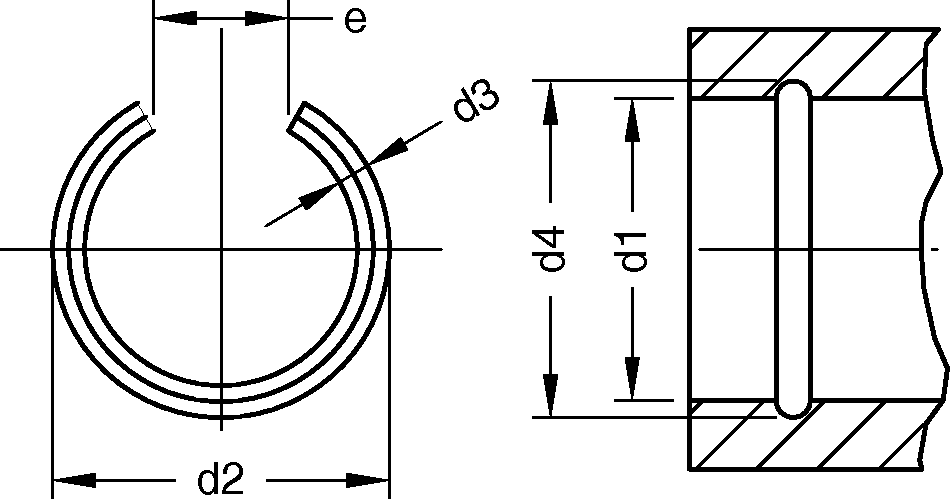

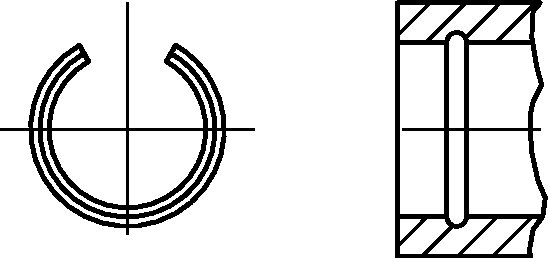

Round wire snap ring form A

Standard:	DIN 7993
Ex WGR n.:	1752

Produktfilter

Numero di materiale	inner diameter	outer diameter	nominal diameter	size	material	Imballaggio
10020553	5.1 mm	6.7 mm	6.0 mm	6	steel	STD 1000
10020557	6.1 mm	7.7 mm	7.0 mm	7	steel	STD 2500
10020561	7.1 mm	8.7 mm	8.0 mm	8	steel	STD 2500
10020565	9.1 mm	10.7 mm	10.0 mm	10	steel	STD 1000
10020569	10.8 mm	12.8 mm	12.0 mm	12	steel	STD 2000
10020573	12.8 mm	14.8 mm	14.0 mm	14	steel	STD 1000
10020577	14.2 mm	17.4 mm	16.0 mm	16	steel	STD 100
10020581	16.2 mm	19.4 mm	18.0 mm	18	steel	STD 1000
10020585	17.7 mm	21.7 mm	20.0 mm	20	steel	STD 1000
10020589	19.7 mm	23.7 mm	22.0 mm	22	steel	STD 500
10020633	56.1 mm	62.5 mm	60.0 mm	60	steel	STD 500
