Hex lock nut form V DIN980

Standard:	DIN 980, DIN ISO 7042
Ex WGR n.:	3386

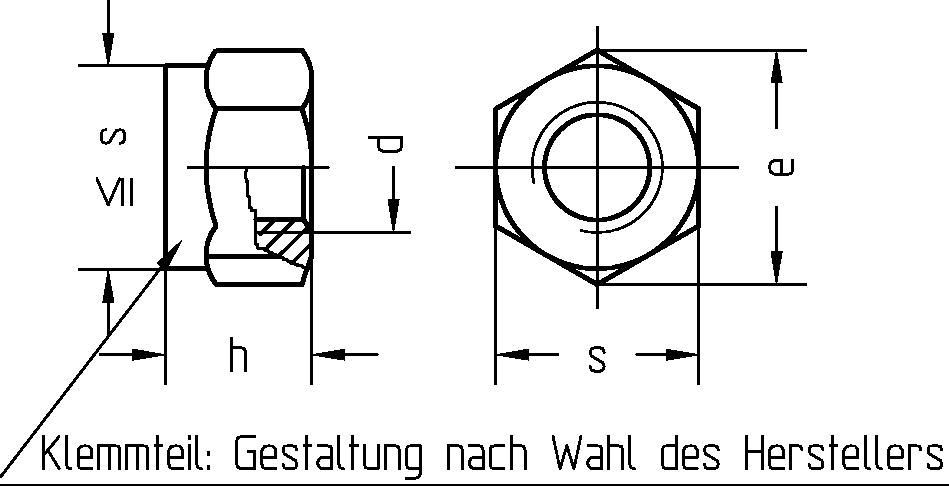

Schizzo Hex lock nut form V DIN980

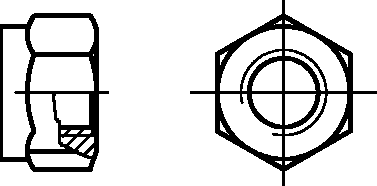

Schizzo 2 Hex lock nut form V DIN980

Produktfilter

thread diameter

Alle 4.0 mm 5.0 mm 6.0 mm 8.0 mm 10.0 mm 12.0 mm 16.0 mm 20.0 mm 24.0 mm

size

Alle M4 M5 M6 M8 M10 M12 M16 M20 M24

drive size

Alle 7 mm 8 mm 10 mm 13 mm 17 mm 19 mm 24 mm 30 mm 36 mm

total nut height

Alle 4.8 mm 6.0 mm 6.6 mm 8.8 mm 11.0 mm 13.2 mm 17.6 mm 22.0 mm 26.4 mm

Numero di materiale	thread diameter	size	drive size	total nut height	standard type	Imballaggio	Quantità
10077318	4.0 mm	M4	7 mm	4.8 mm	DIN	STD 1000
10077322	5.0 mm	M5	8 mm	6.0 mm	DIN	STD 200
10077326	6.0 mm	M6	10 mm	6.6 mm	DIN	STD 1000
10077330	8.0 mm	M8	13 mm	8.8 mm	DIN	STD 1000
10077334	10.0 mm	M10	17 mm	11.0 mm	DIN	STD 500
10077342	12.0 mm	M12	19 mm	13.2 mm	DIN	STD 100
10077346	16.0 mm	M16	24 mm	17.6 mm	DIN	STD 500
10077350	20.0 mm	M20	30 mm	22.0 mm	DIN	STD 100
10077354	24.0 mm	M24	36 mm	26.4 mm	DIN	STD 50
