Product group 15061002

6KT SHR-HV+SHB+MU ü-compliant

Norm:	DIN 6914, DIN EN 14399
Surface	062 HV hot-dip galvanized tzn
Former WGR no.:	0151

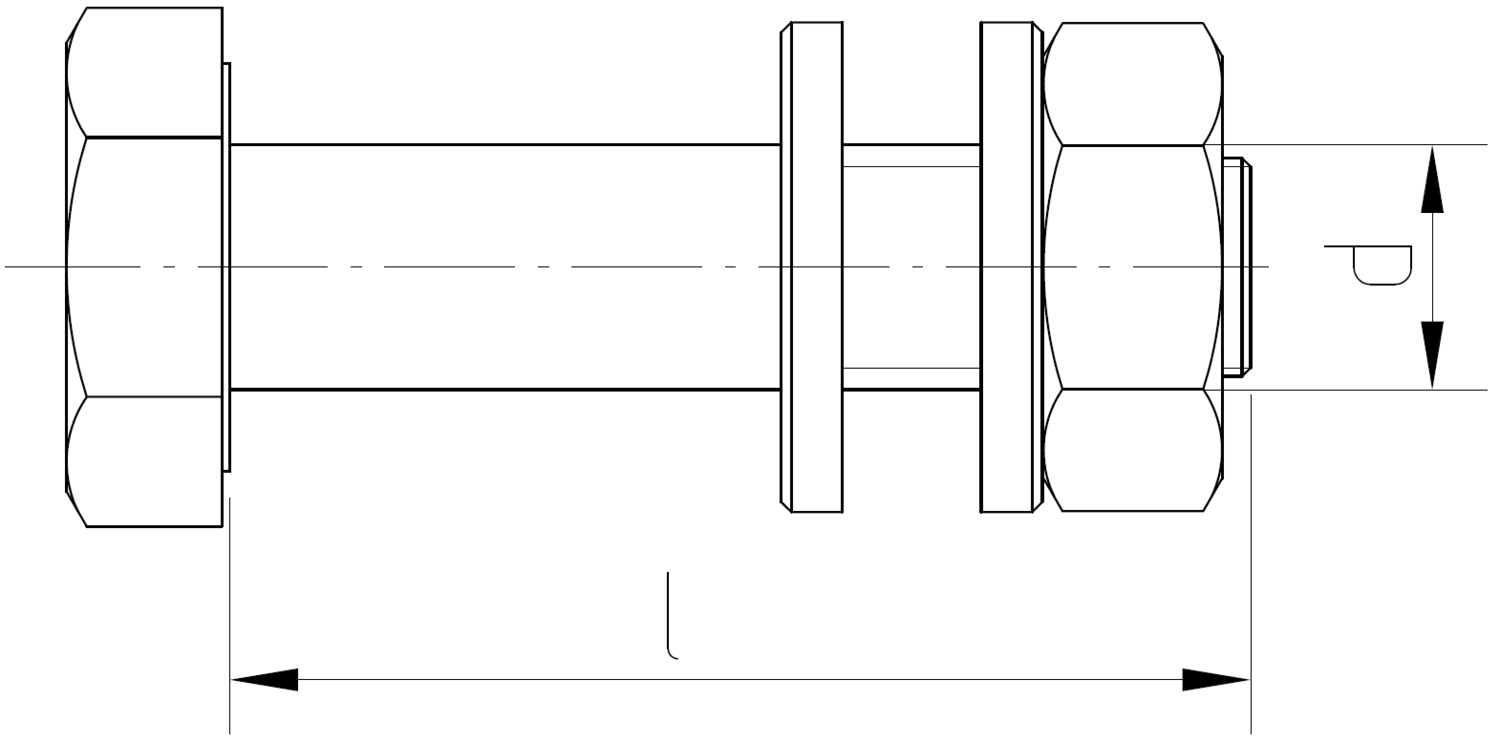

Sketch 6KT SHR-HV+SHB+MU ü-compliant

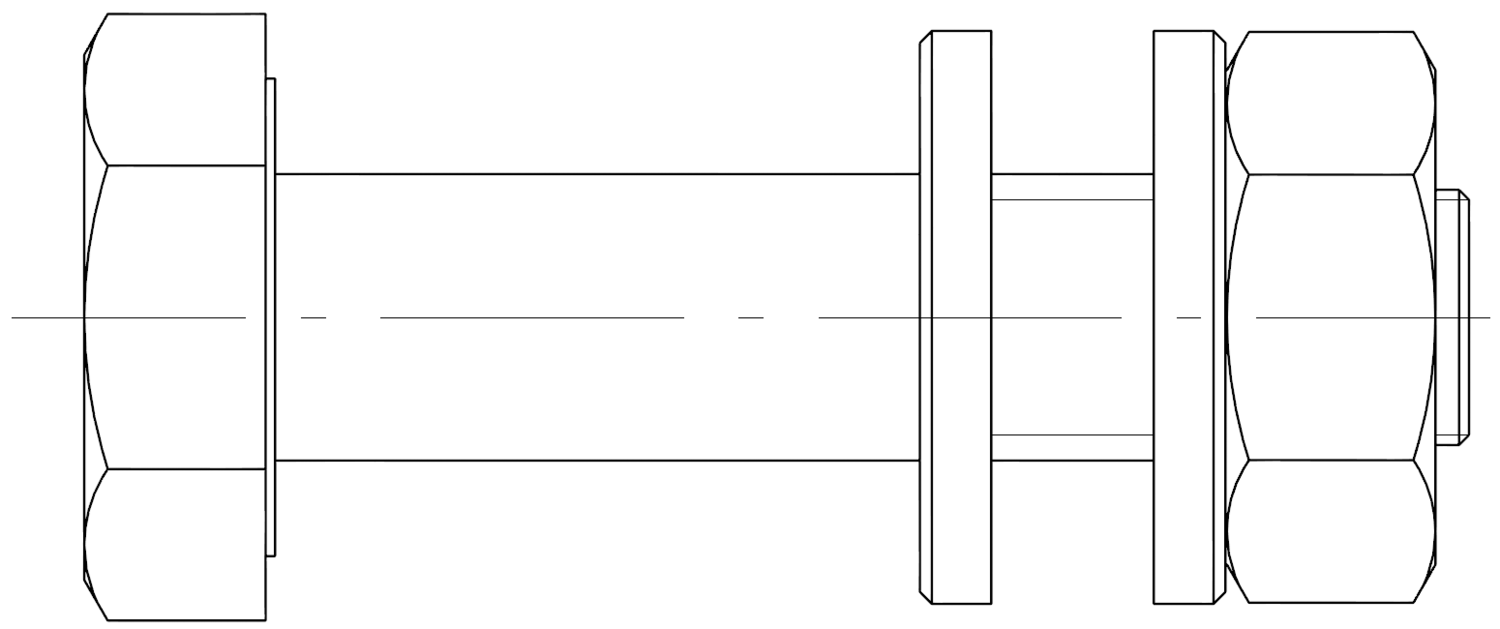

Sketch 2 6KT SHR-HV+SHB+MU ü-compliant

Produktfilter

thread diameter

Alle 12.0 mm 16.0 mm 20.0 mm 24.0 mm 30.0 mm 36.0 mm

size

Alle M12X45 M12X50 M12X55 M12X85 M16X40 M16X45 M16X55 M16X65 M16X80 M20X50 M20X60 M20X65 M20X70 M24X65 M30X90 M30X105 M36X135

drive size

Alle 27 mm 22 mm 32 mm 41 mm 50 mm 60 mm

nominal length

Alle 45.0 mm 50.0 mm 55.0 mm 85.0 mm 40.0 mm 65.0 mm 80.0 mm 60.0 mm 70.0 mm 90.0 mm 105.0 mm 135.0 mm

Material number	thread diameter	size	drive size	nominal length	standard type	Packaging	Quantity
10010079	12.0 mm	M12X45	27 mm	45.0 mm	EN	STD 100
10010082	12.0 mm	M12X50	27 mm	50.0 mm	EN	STD 100
10010085	12.0 mm	M12X55	22 mm	55.0 mm	EN	STD 100
10010088	12.0 mm	M12X85	22 mm	85.0 mm	EN	STD 50
10010091	16.0 mm	M16X40	27 mm	40.0 mm	EN	STD 50
10010094	16.0 mm	M16X45	27 mm	45.0 mm	EN	STD 50
10010098	16.0 mm	M16X55	27 mm	55.0 mm	EN	STD 50
10010101	16.0 mm	M16X65	27 mm	65.0 mm	EN	STD 50
10010104	16.0 mm	M16X80	27 mm	80.0 mm	EN	STD 25
10010107	20.0 mm	M20X50	32 mm	50.0 mm	EN	STD 25
10010110	20.0 mm	M20X60	32 mm	60.0 mm	EN	STD 25
10010113	20.0 mm	M20X65	32 mm	65.0 mm	EN	STD 25
10010116	20.0 mm	M20X70	32 mm	70.0 mm	EN	STD 0
10010119	24.0 mm	M24X65	41 mm	65.0 mm	EN	STD 0
10010123	30.0 mm	M30X90	50 mm	90.0 mm	EN	STD 0
10010126	30.0 mm	M30X105	50 mm	105.0 mm	EN	STD 0
10010129	36.0 mm	M36X135	60 mm	135.0 mm	EN	STD 0
