Product group 15236006

Round SHB DIN 433
Norm: DIN 433, DIN ISO 7092
Former WGR no.: 3325

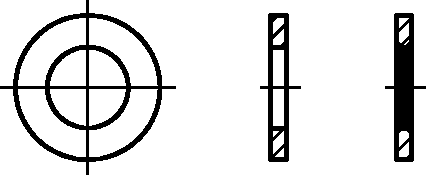

Sketch Round SHB DIN 433

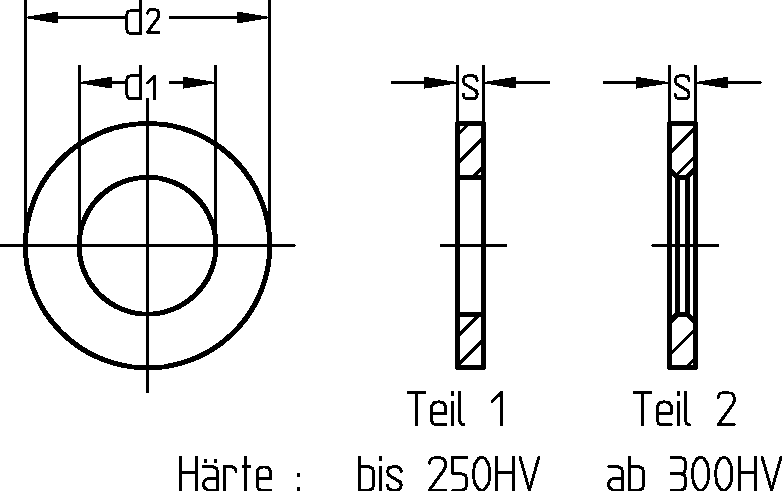

Sketch 2 Round SHB DIN 433

Produktfilter

inner diameter

Alle 3.2 mm 4.3 mm 5.3 mm 6.4 mm 8.4 mm 10.5 mm 13.0 mm

outer diameter

Alle 6.0 mm 8.0 mm 9.0 mm 11.0 mm 15.0 mm 18.0 mm 20.0 mm

thickness

Alle 5.0 mm 1.0 mm 1.6 mm 2.0 mm

size

Alle 3,2 4,3 5,3 6,4 8,4 10,5 13

nominal diameter

Alle 3.2 mm 4.3 mm 5.3 mm 6.4 mm 8.4 mm 10.5 mm 13.0 mm
Material number inner diameter outer diameter thickness material current standard Packaging Quantity
10065530 3.2 mm 6.0 mm 5.0 mm stainless steel A2 ISO 7092 STD 1000
Add to cart
10065538 4.3 mm 8.0 mm 5.0 mm stainless steel A2 ISO 7092 STD 1000
Add to cart
10065547 5.3 mm 9.0 mm 1.0 mm stainless steel A2 ISO 7092 STD 1000
Add to cart
10065551 6.4 mm 11.0 mm 1.6 mm stainless steel A2 ISO 7092 STD 1000
Add to cart
10065555 8.4 mm 15.0 mm 1.6 mm stainless steel A2 ISO 7092 STD 1000
Add to cart
10065560 10.5 mm 18.0 mm 1.6 mm stainless steel A2 ISO 7092 STD 1000
Add to cart
10065564 13.0 mm 20.0 mm 2.0 mm stainless steel A2 ISO 7092 STD 1000
Add to cart
