Product group 15238004

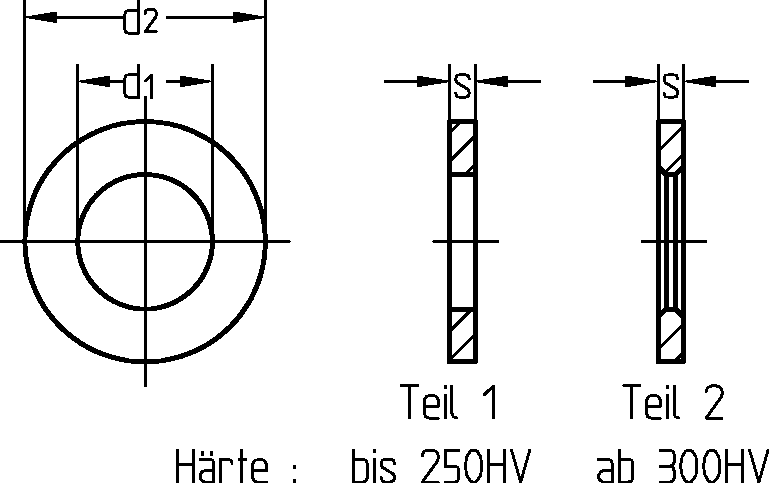

Round SHB DIN 433

Norm:	DIN 433, DIN ISO 7092
Former WGR no.:	3570

Produktfilter

Material number	inner diameter	outer diameter	thickness	material	current standard	Packaging
10096312	3.2 mm	6.0 mm	5.0 mm	stainless steel A4	ISO 7092	STD 1000
10096320	4.3 mm	8.0 mm	5.0 mm	stainless steel A4	ISO 7092	STD 1000
10096329	5.3 mm	9.0 mm	1.0 mm	stainless steel A4	ISO 7092	STD 1000
10096338	6.4 mm	11.0 mm	1.6 mm	stainless steel A4	ISO 7092	STD 1000
10096347	8.4 mm	15.0 mm	1.6 mm	stainless steel A4	ISO 7092	STD 1000
10096356	10.5 mm	18.0 mm	1.6 mm	stainless steel A4	ISO 7092	STD 1000
10096366	13.0 mm	20.0 mm	2.0 mm	stainless steel A4	ISO 7092	STD 1000
10096375	15.0 mm	24.0 mm	2.5 mm	stainless steel A4	ISO 7092	STD 500
10096383	17.0 mm	28.0 mm	2.5 mm	stainless steel A4	ISO 7092	STD 500
10096392	19.0 mm	30.0 mm	2.5 mm	stainless steel A4	ISO 7092	STD 250
10096402	21.0 mm	34.0 mm	3.0 mm	stainless steel A4	ISO 7092	STD 250
