Gruppo di prodotti 15238002

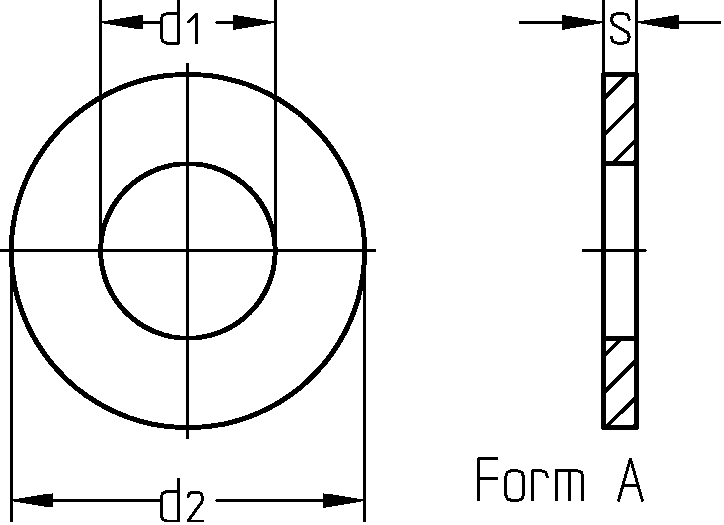

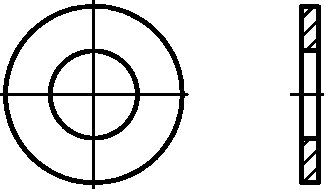

Round SHB DIN 125 1

Standard:	DIN 125, DIN ISO 7089
Ex WGR n.:	3559

Produktfilter

Numero di materiale	inner diameter	outer diameter	size	material	thickness	Imballaggio
10089915	3.2 mm	7.0 mm	3,2	stainless steel A4	0.5 mm	STD 2000
10089919	4.3 mm	9.0 mm	4,3	stainless steel A4	0.8 mm	STD 1000
10089924	5.3 mm	10.0 mm	5,3	stainless steel A4	1.0 mm	STD 1000
10089929	6.4 mm	12.0 mm	6,4	stainless steel A4	1.6 mm	STD 1000
10089933	8.4 mm	16.0 mm	8,4	stainless steel A4	1.6 mm	STD 1000
10089941	10.5 mm	20.0 mm	10,5	stainless steel A4	2.0 mm	STD 500
10089945	13.0 mm	24.0 mm	13	stainless steel A4	2.5 mm	STD 500
10089949	15.0 mm	28.0 mm	15	stainless steel A4	2.5 mm	STD 250
10089955	17.0 mm	30.0 mm	17	stainless steel A4	3.0 mm	STD 250
10089960	19.0 mm	34.0 mm	19	stainless steel A4	3.0 mm	STD 100
10089964	21.0 mm	37.0 mm	21	stainless steel A4	3.0 mm	STD 100
10089968	23.0 mm	39.0 mm	23	stainless steel A4	3.0 mm	STD 50
10089973	25.0 mm	44.0 mm	25	stainless steel A4	4.0 mm	STD 50
10089977	28.0 mm	50.0 mm	28	stainless steel A4	4.0 mm	STD 50
10089981	31.0 mm	56.0 mm	31	stainless steel A4	4.0 mm	STD 50
10089986	34.0 mm	60.0 mm	34	stainless steel A4	5.0 mm	STD 25
10089989	37.0 mm	66.0 mm	37	stainless steel A4	5.0 mm	STD 50
10089993	40.0 mm	40.0 mm	40	stainless steel A4	6.0 mm	STD 25
