Gruppo di prodotti 15248002

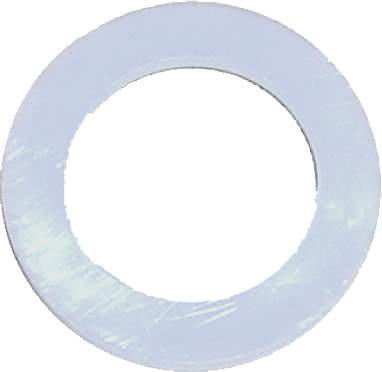

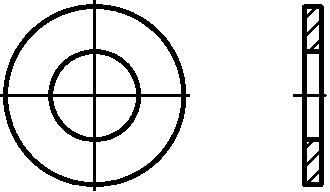

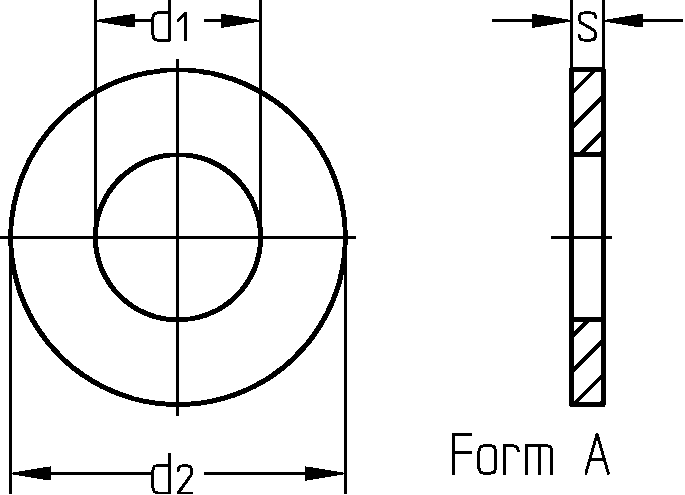

Round SHB DIN 125

Standard:	DIN 125, DIN ISO 7089
Ex WGR n.:	3902

Produktfilter

Numero di materiale	inner diameter	outer diameter	size	material	thickness	Imballaggio
10002483	2.5 mm	6.0 mm	2,5	polyamid	5.0 mm	STD 1000
10002494	3.2 mm	7.0 mm	3,2	polyamid	0.5 mm	STD 200
10117700	4.3 mm	9.0 mm	4,3	polyamid	0.8 mm	DIY 100
10117700	4.3 mm	9.0 mm	4,3	polyamid	0.8 mm	DIY 100
10002507	4.3 mm	9.0 mm	4,3	polyamid	0.8 mm	STD 200
10117710	5.3 mm	10.0 mm	5,3	polyamid	1.0 mm	DIY 100
10117710	5.3 mm	10.0 mm	5,3	polyamid	1.0 mm	DIY 100
10002527	5.3 mm	10.0 mm	5,3	polyamid	1.0 mm	STD 200
10117720	6.4 mm	12.0 mm	6,4	polyamid	1.6 mm	DIY 100
10117720	6.4 mm	12.0 mm	6,4	polyamid	1.6 mm	DIY 100
10002546	6.4 mm	12.0 mm	6,4	polyamid	1.6 mm	STD 200
10117731	8.4 mm	16.0 mm	8,4	polyamid	1.6 mm	DIY 100
10117731	8.4 mm	16.0 mm	8,4	polyamid	1.6 mm	DIY 100
10002571	8.4 mm	16.0 mm	8,4	polyamid	1.6 mm	STD 200
10117741	10.5 mm	20.0 mm	10,5	polyamid	2.0 mm	DIY 100
10117741	10.5 mm	20.0 mm	10,5	polyamid	2.0 mm	DIY 100
10002588	10.5 mm	20.0 mm	10,5	polyamid	2.0 mm	STD 100
10002607	13.0 mm	24.0 mm	13	polyamid	2.5 mm	STD 100
10002617	15.0 mm	28.0 mm	15	polyamid	2.5 mm	STD 100
10002622	17.0 mm	30.0 mm	17	polyamid	3.0 mm	STD 100
10002627	19.0 mm	34.0 mm	19	polyamid	3.0 mm	STD 100
10002631	21.0 mm	37.0 mm	21	polyamid	3.0 mm	STD 100
10002642	25.0 mm	44.0 mm	25	polyamid	4.0 mm	STD 100
10002647	28.0 mm	50.0 mm	28	polyamid	4.0 mm	STD 100
