Gruppo di prodotti 15241001

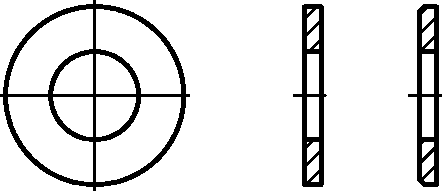

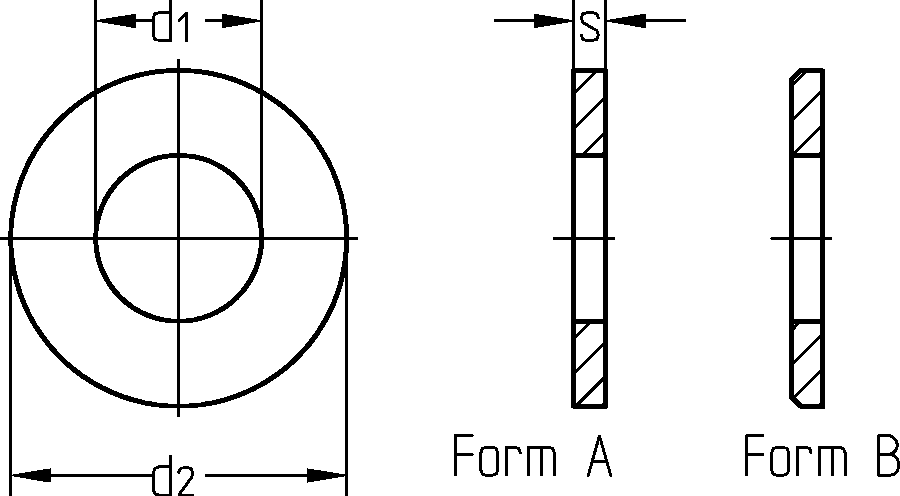

Round SHB DIN 125

Standard:	DIN 125, DIN ISO 7089
Ex WGR n.:	3703

Produktfilter

Numero di materiale	inner diameter	outer diameter	size	material	thickness	Imballaggio
10102008	3.2 mm	7.0 mm	3,2	alumininium	0.5 mm	STD 5000
10102017	4.3 mm	9.0 mm	4,3	alumininium	0.8 mm	STD 5000
10102026	5.3 mm	10.0 mm	5,3	alumininium	1.0 mm	STD 3000
10117101	6.4 mm	12.0 mm	6,4	alumininium	1.6 mm	STD 100
10117101	6.4 mm	12.0 mm	6,4	alumininium	1.6 mm	STD 100
10102035	6.4 mm	12.0 mm	6,4	alumininium	1.6 mm	STD 1000
10117106	8.4 mm	16.0 mm	8,4	alumininium	1.6 mm	STD 50
10117106	8.4 mm	16.0 mm	8,4	alumininium	1.6 mm	STD 50
10102057	8.4 mm	16.0 mm	8,4	alumininium	1.6 mm	STD 1500
10117111	10.5 mm	20.0 mm	10,5	alumininium	2.0 mm	STD 25
10117111	10.5 mm	20.0 mm	10,5	alumininium	2.0 mm	STD 25
10102070	10.5 mm	20.0 mm	10,5	alumininium	2.0 mm	STD 500
10102084	13.0 mm	24.0 mm	13	alumininium	2.5 mm	STD 250
10102093	17.0 mm	30.0 mm	17	alumininium	3.0 mm	STD 250
