Product group 15170055

6KT nut lock MBN 13 023

Former WGR no.:

0929

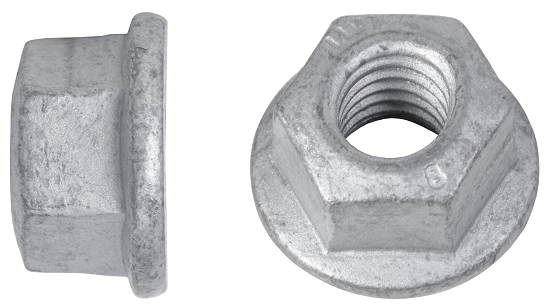

Article picture 6KT nut lock MBN 13 023

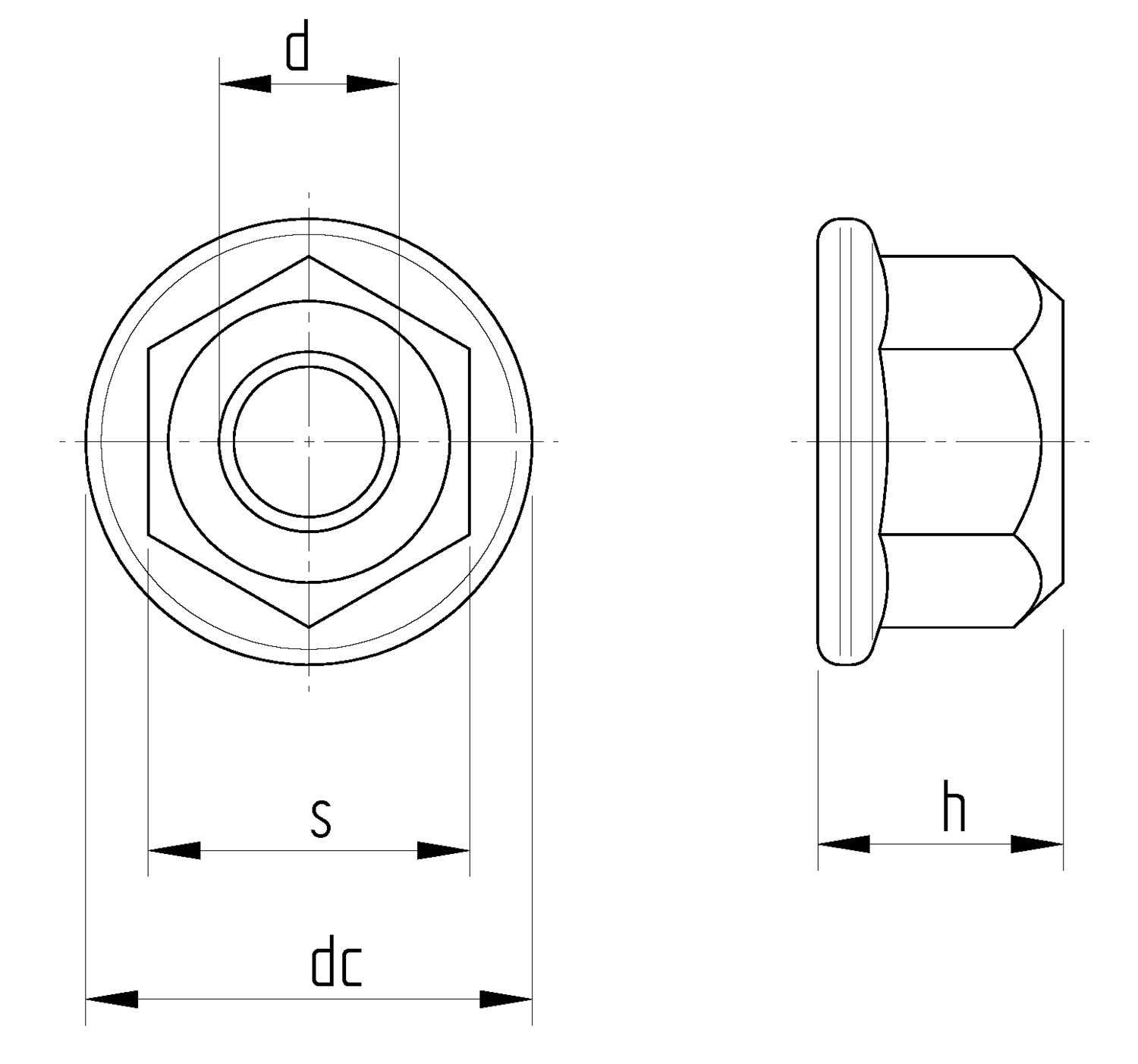

Sketch 6KT nut lock MBN 13 023

Surfaces

106 DBL 9440.40 zinc plate flZn/nc/TL 720h lubricated RW 0.08-0.14 DHN19.001

107 DBL 9440.50 flznnc black

Produktfilter

thread diameter

Alle 5.0 mm 6.0 mm 8.0 mm

size

drive size

Alle 8 mm 10 mm 13 mm

total nut height

Alle 6.2 mm 7.3 mm 9.4 mm

Material number	term label	thread diameter	size	drive size	drive type-fastener	Packaging	Quantity
10182827	Hexagon lock nut M.FL	5.0 mm	M5	8 mm	external hexagon	STD 500
10123261	Hexagon lock nut M.FL	6.0 mm	M6	10 mm	external hexagon	STD 200
10123261	Hexagon lock nut M.FL	6.0 mm	M6	10 mm	external hexagon	STD 200
10013404	Hexagon lock nut M.FL	6.0 mm	M6	10 mm	external hexagon	STD 3000
10013409	Hexagon lock nut M.FL	8.0 mm	M8	13 mm	external hexagon	STD 1000
