Product shop Product shop Blind riveting program GESIPA blind rivet nuts flat head

Standard Gesipa

Article picture Standard Gesipa

Article picture Standard Gesipa

FLKO Gesipa knurled

Article picture FLKO Gesipa knurled

Article picture FLKO Gesipa knurled

Product group 14037004

FLKO Gesipa knurled

Former WGR no.:

2933

Article picture FLKO Gesipa knurled

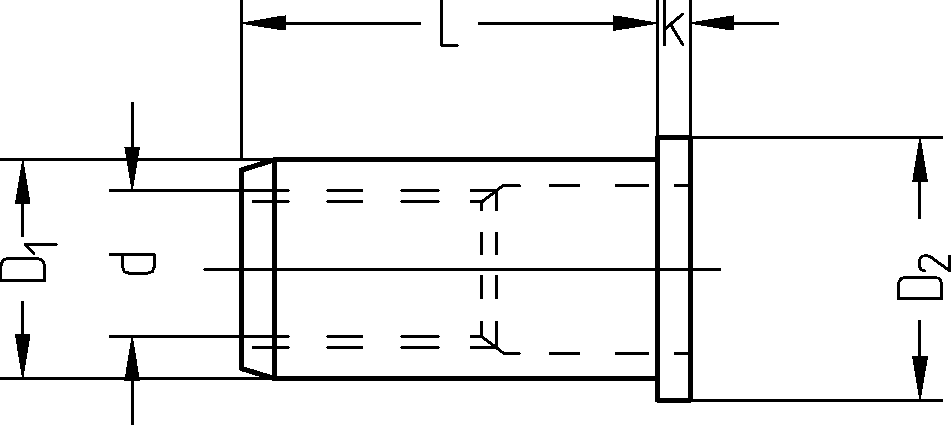

Sketch FLKO Gesipa knurled

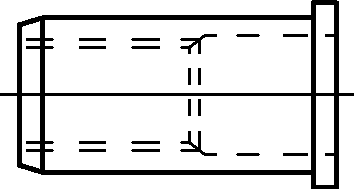

Sketch 2 FLKO Gesipa knurled

Produktfilter

nominal diameter

Alle 4.0 mm 5.0 mm 6.0 mm 8.0 mm 10.0 mm

size

Alle M4X11 M4X13 M5X11,5 M5X13,5 M6X15,5 M8X17 M10X17,5 M10X20,5

nominal length

Alle 11.0 mm 13.0 mm 11.5 mm 13.5 mm 15.5 mm 17.0 mm 17.5 mm 20.5 mm

shaft length

Alle 6.0 mm 7.0 mm 9.0 mm 11.0 mm 17.5 mm 20.5 mm

Material number	nominal diameter	size	nominal length	shaft length	material of sleeve	Packaging	Quantity
10048943	4.0 mm	M4X11	11.0 mm	6.0 mm	steel	STD 500
10048948	4.0 mm	M4X13	13.0 mm	6.0 mm	steel	STD 500
10048952	5.0 mm	M5X11,5	11.5 mm	7.0 mm	steel	STD 500
10048958	5.0 mm	M5X13,5	13.5 mm	7.0 mm	steel	STD 500
10048963	6.0 mm	M6X15,5	15.5 mm	9.0 mm	steel	STD 250
10048972	8.0 mm	M8X17	17.0 mm	11.0 mm	steel	STD 100
10048987	10.0 mm	M10X17,5	17.5 mm	17.5 mm	steel	STD 100
10048991	10.0 mm	M10X20,5	20.5 mm	20.5 mm	steel	STD 100
