Product group 14014010

Standard Gesipa

Norm:	DIN 7337, DIN ISO 15981
Former WGR no.:	2905

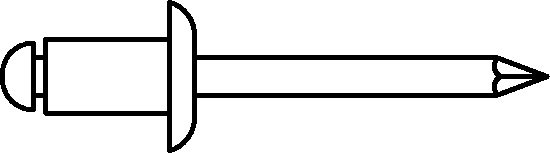

Sketch Standard Gesipa

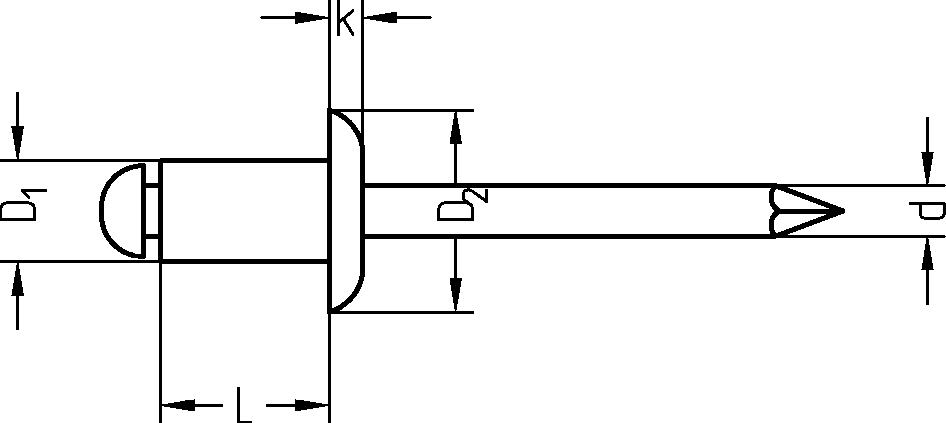

Sketch 2 Standard Gesipa

Produktfilter

nominal diameter

Alle 3.2 mm 4.0 mm

size

Alle 3,2X6,1 3,2X7,6 4X6,6 4X9,8

nominal length

Alle 6.1 mm 7.6 mm 6.6 mm 9.8 mm

Material number	nominal diameter	size	nominal length	pin material	material of sleeve	Packaging	Quantity
10046937	3.2 mm	3,2X6,1	6.1 mm	Aluminium	Aluminium	STD 500
10046942	3.2 mm	3,2X7,6	7.6 mm	Aluminium	Aluminium	STD 500
10046951	4.0 mm	4X6,6	6.6 mm	Aluminium	Aluminium	STD 500
10046955	4.0 mm	4X9,8	9.8 mm	Aluminium	Aluminium	STD 500
