Product group 15136018

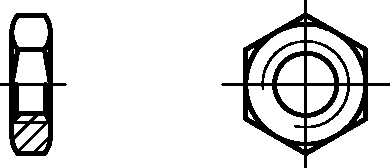

6KT MU low DIN 439

Norm:	DIN 439, DIN ISO 4035
Former WGR no.:	3329

Produktfilter

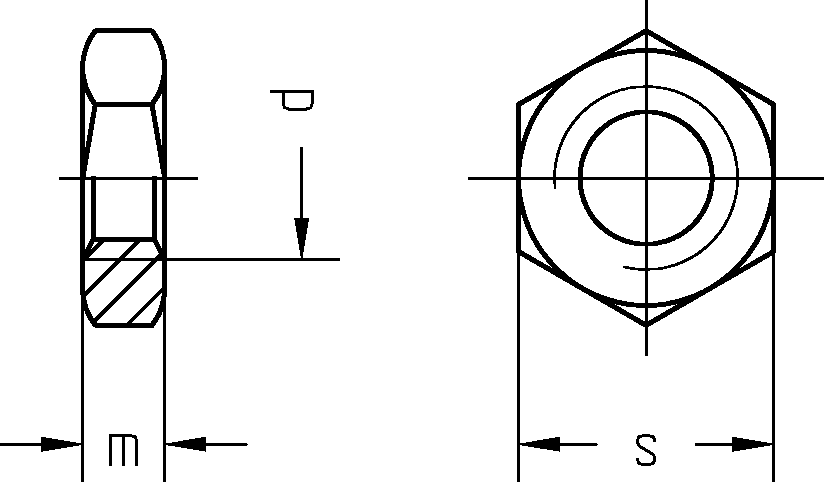

Material number	thread diameter	size	drive size	total nut height	current standard	Packaging
10065624	2.0 mm	M2	4,0 mm	1.2 mm	ISO 8675	STD 1000
10065628	2.5 mm	M2.5	5 mm	1.6 mm	ISO 8675	STD 1000
10065633	3.0 mm	M3	5,5 mm	1.8 mm	ISO 8675	STD 1000
10065643	4.0 mm	M4	7 mm	2.2 mm	ISO 8675	STD 1000
10065647	5.0 mm	M5	8 mm	2.7 mm	ISO 8675	STD 1000
10065652	6.0 mm	M6	10 mm	3.2 mm	ISO 8675	STD 1000
10065657	8.0 mm	M8	13 mm	4.0 mm	ISO 8675	STD 1000
10065662	10.0 mm	M10	17 mm	5.0 mm	ISO 8675	STD 500
10065667	12.0 mm	M12	19 mm	6.0 mm	ISO 8675	STD 500
10065681	16.0 mm	M16	24 mm	8.0 mm	ISO 8675	STD 100
10065686	20.0 mm	M20	30 mm	10.0 mm	ISO 8675	STD 100
10065695	24.0 mm	M24	36 mm	12.0 mm	ISO 8675	STD 50
10065700	27.0 mm	M27	41 mm	13.5 mm	ISO 8675	STD 50
10065710	30.0 mm	M30	46 mm	15.0 mm	ISO 8675	STD 25
