6KT SHR VG DIN 558

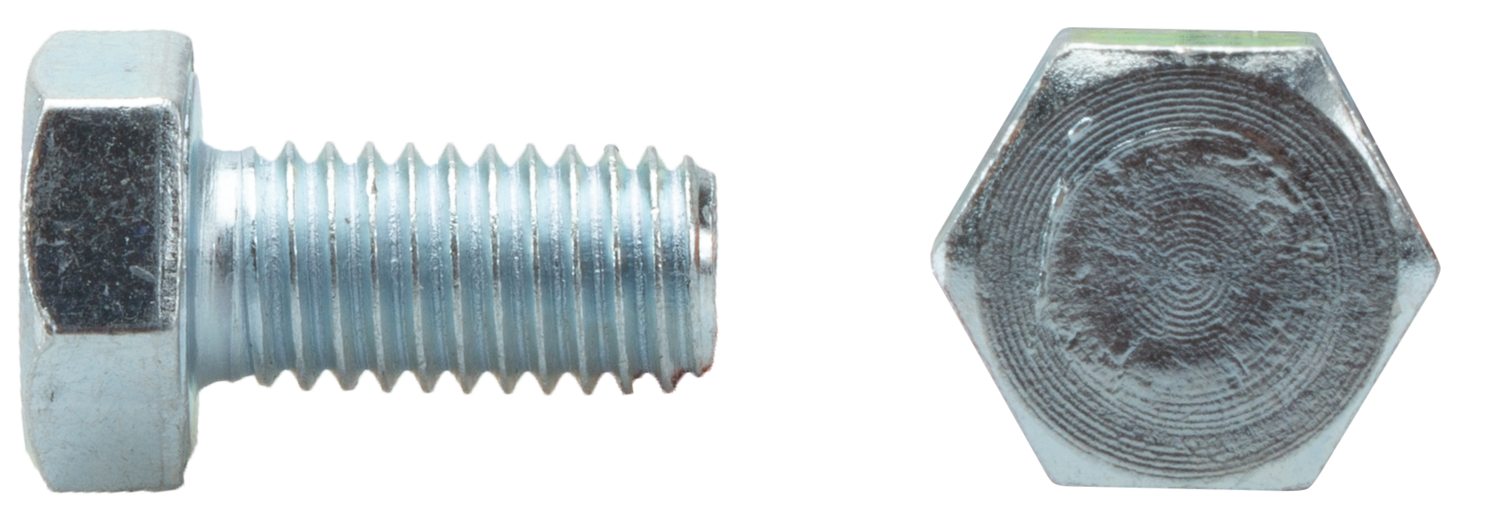

Article picture 6KT SHR VG DIN 558

Article picture 6KT SHR VG DIN 558

Product group 15325008

6KT SHR VG DIN 558

Norm:	DIN 558, DIN ISO 4018
Surface	001 galvanized
Former WGR no.:	0007

Article picture 6KT SHR VG DIN 558

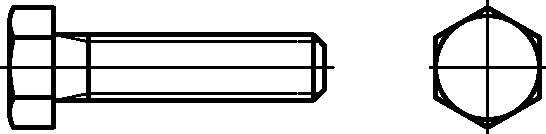

Sketch 6KT SHR VG DIN 558

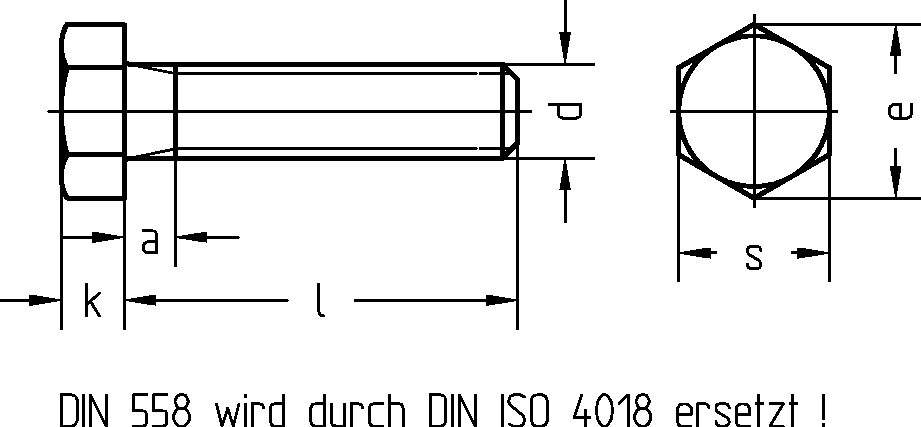

Sketch 2 6KT SHR VG DIN 558

Produktfilter

thread diameter

Alle 6.0 mm 8.0 mm 10.0 mm

nominal length

Alle 10.0 mm 35.0 mm 16.0 mm 20.0 mm 50.0 mm 30.0 mm 40.0 mm

drive size

Alle 10 mm 13 mm 17 mm

size

Alle M6X10 M6X35 M8X16 M8X20 M8X50 M10X30 M10X40

Material number	thread diameter	nominal length	drive size	material	strength class-fastener	Packaging	Quantity
10000063	6.0 mm	10.0 mm	10 mm	steel	4.8	STD 500
10000067	6.0 mm	35.0 mm	10 mm	steel	4.8	STD 200
10000083	8.0 mm	16.0 mm	13 mm	steel	4.8	STD 200
10000089	8.0 mm	20.0 mm	13 mm	steel	4.8	STD 200
10000093	8.0 mm	50.0 mm	13 mm	steel	4.8	STD 200
10000105	10.0 mm	30.0 mm	17 mm	steel	4.8	STD 200
10000111	10.0 mm	40.0 mm	17 mm	steel	4.8	STD 100
