Product group 15325004

Sechskantschrauben Mutter mit Schaft

Norm:	DIN 601, DIN ISO 4016
Surface	001 galvanized
Former WGR no.:	0009

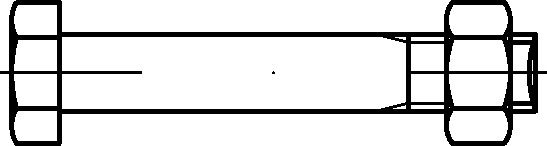

Sketch Sechskantschrauben Mutter mit Schaft

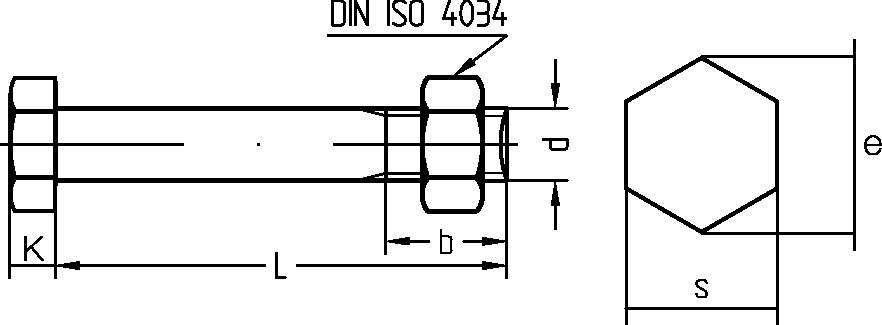

Sketch 2 Sechskantschrauben Mutter mit Schaft

Produktfilter

Material number	thread diameter	size	drive size	thread type	strength class-fastener	Packaging
10113182	5.0 mm	M5X16	8 mm	fully threaded	4.8	DIY 20
10113182	5.0 mm	M5X16	8 mm	fully threaded	4.8	DIY 20
10113177	5.0 mm	M5X16	8 mm	fully threaded	4.8	DIY 50
10002470	5.0 mm	M5X16	8 mm	fully threaded	4.8	STD 500
10113192	5.0 mm	M5X20	8 mm	fully threaded	4.8	DIY 20
10113192	5.0 mm	M5X20	8 mm	fully threaded	4.8	DIY 20
10113187	5.0 mm	M5X20	8 mm	fully threaded	4.8	DIY 50
10002487	5.0 mm	M5X20	8 mm	fully threaded	4.8	STD 500
10113202	5.0 mm	M5X25	8 mm	partial threaded	4.8	DIY 20
10113202	5.0 mm	M5X25	8 mm	partial threaded	4.8	DIY 20
10113207	5.0 mm	M5X25	8 mm	partial threaded	4.8	DIY 100
10002500	5.0 mm	M5X25	8 mm	partial threaded	4.8	STD 500
10113216	5.0 mm	M5X30	8 mm	partial threaded	4.8	DIY 20
10113216	5.0 mm	M5X30	8 mm	partial threaded	4.8	DIY 20
10113212	5.0 mm	M5X30	8 mm	partial threaded	4.8	DIY 50
10113222	5.0 mm	M5X30	8 mm	partial threaded	4.8	DIY 100
10002517	5.0 mm	M5X30	8 mm	partial threaded	4.8	STD 500
10113227	5.0 mm	M5X35	8 mm	partial threaded	4.8	DIY 100
10113227	5.0 mm	M5X35	8 mm	partial threaded	4.8	DIY 100
10002537	5.0 mm	M5X35	8 mm	partial threaded	4.8	STD 200
10113236	5.0 mm	M5X40	8 mm	partial threaded	4.8	DIY 20
10113236	5.0 mm	M5X40	8 mm	partial threaded	4.8	DIY 20
10113231	5.0 mm	M5X40	8 mm	partial threaded	4.8	DIY 50
10113241	5.0 mm	M5X40	8 mm	partial threaded	4.8	DIY 100
10002545	5.0 mm	M5X40	8 mm	partial threaded	4.8	STD 200
30007899	5.0 mm	M5X50	8 mm	partial threaded	4.8	DIY 100
30007899	5.0 mm	M5X50	8 mm	partial threaded	4.8	DIY 100
10002564	5.0 mm	M5X50	8 mm	partial threaded	4.8	STD 200
10002573	5.0 mm	M5X60	8 mm	partial threaded	4.8	STD 200
10002583	6.0 mm	M6X10	10 mm	partial threaded	4.8	STD 500
10002586	6.0 mm	M6X12	10 mm	fully threaded	4.8	STD 500
10113251	6.0 mm	M6X16	10 mm	fully threaded	4.8	DIY 20
10113251	6.0 mm	M6X16	10 mm	fully threaded	4.8	DIY 20
10113246	6.0 mm	M6X16	10 mm	fully threaded	4.8	DIY 50
10002591	6.0 mm	M6X16	10 mm	fully threaded	4.8	STD 500
10113261	6.0 mm	M6X20	10 mm	fully threaded	4.8	DIY 20
10113261	6.0 mm	M6X20	10 mm	fully threaded	4.8	DIY 20
10113256	6.0 mm	M6X20	10 mm	fully threaded	4.8	DIY 50
10113266	6.0 mm	M6X20	10 mm	fully threaded	4.8	DIY 100
10002601	6.0 mm	M6X20	10 mm	fully threaded	4.8	STD 500
10113276	6.0 mm	M6X25	10 mm	fully threaded	4.8	DIY 20
10113276	6.0 mm	M6X25	10 mm	fully threaded	4.8	DIY 20
10113271	6.0 mm	M6X25	10 mm	fully threaded	4.8	DIY 50
10002615	6.0 mm	M6X25	10 mm	fully threaded	4.8	STD 500
10113285	6.0 mm	M6X30	10 mm	partial threaded	4.8	DIY 20
10113285	6.0 mm	M6X30	10 mm	partial threaded	4.8	DIY 20
10113280	6.0 mm	M6X30	10 mm	partial threaded	4.8	DIY 50
10113290	6.0 mm	M6X30	10 mm	partial threaded	4.8	DIY 100
10002626	6.0 mm	M6X30	10 mm	partial threaded	4.8	STD 500
10002640	6.0 mm	M6X35	10 mm	partial threaded	4.8	STD 200
10113300	6.0 mm	M6X40	10 mm	partial threaded	4.8	DIY 20
10113300	6.0 mm	M6X40	10 mm	partial threaded	4.8	DIY 20
10113295	6.0 mm	M6X40	10 mm	partial threaded	4.8	DIY 50
10113305	6.0 mm	M6X40	10 mm	partial threaded	4.8	DIY 100
10002645	6.0 mm	M6X40	10 mm	partial threaded	4.8	STD 200
10002659	6.0 mm	M6X45	10 mm	partial threaded	4.8	STD 200
10113315	6.0 mm	M6X50	10 mm	partial threaded	4.8	DIY 20
10113315	6.0 mm	M6X50	10 mm	partial threaded	4.8	DIY 20
10113310	6.0 mm	M6X50	10 mm	partial threaded	4.8	DIY 50
10113320	6.0 mm	M6X50	10 mm	partial threaded	4.8	DIY 100
10002663	6.0 mm	M6X50	10 mm	partial threaded	4.8	STD 200
10002676	6.0 mm	M6X55	10 mm	partial threaded	4.8	STD 200
10113330	6.0 mm	M6X60	10 mm	partial threaded	4.8	DIY 10
10113330	6.0 mm	M6X60	10 mm	partial threaded	4.8	DIY 10
10113325	6.0 mm	M6X60	10 mm	partial threaded	4.8	DIY 25
10113335	6.0 mm	M6X60	10 mm	partial threaded	4.8	DIY 100
10002681	6.0 mm	M6X60	10 mm	partial threaded	4.8	STD 200
10002693	6.0 mm	M6X65	10 mm	partial threaded	4.8	STD 200
10113345	6.0 mm	M6X70	10 mm	partial threaded	4.8	DIY 10
10113345	6.0 mm	M6X70	10 mm	partial threaded	4.8	DIY 10
10113340	6.0 mm	M6X70	10 mm	partial threaded	4.8	DIY 25
10113350	6.0 mm	M6X70	10 mm	partial threaded	4.8	DIY 100
10002698	6.0 mm	M6X70	10 mm	partial threaded	4.8	STD 200
10113359	6.0 mm	M6X80	10 mm	partial threaded	4.8	DIY 10
10113359	6.0 mm	M6X80	10 mm	partial threaded	4.8	DIY 10
10113355	6.0 mm	M6X80	10 mm	partial threaded	4.8	DIY 25
10113364	6.0 mm	M6X80	10 mm	partial threaded	4.8	DIY 100
10002716	6.0 mm	M6X80	10 mm	partial threaded	4.8	STD 200
10113369	6.0 mm	M6X90	10 mm	partial threaded	4.8	DIY 10
10113369	6.0 mm	M6X90	10 mm	partial threaded	4.8	DIY 10
10113374	6.0 mm	M6X90	10 mm	partial threaded	4.8	DIY 50
10002731	6.0 mm	M6X90	10 mm	partial threaded	4.8	STD 100
10113379	6.0 mm	M6X100	10 mm	partial threaded	4.8	DIY 10
10113379	6.0 mm	M6X100	10 mm	partial threaded	4.8	DIY 10
10113384	6.0 mm	M6X100	10 mm	partial threaded	4.8	DIY 50
10002743	6.0 mm	M6X100	10 mm	partial threaded	4.8	STD 100
10002754	6.0 mm	M6X110	10 mm	partial threaded	4.8	STD 100
30007900	6.0 mm	M6X120	10 mm	partial threaded	4.8	DIY 50
30007900	6.0 mm	M6X120	10 mm	partial threaded	4.8	DIY 50
10002760	6.0 mm	M6X120	10 mm	partial threaded	4.8	STD 100
10002772	6.0 mm	M6X130	10 mm	partial threaded	4.8	STD 100
10113394	8.0 mm	M8X16	13 mm	fully threaded	4.8	DIY 20
10113394	8.0 mm	M8X16	13 mm	fully threaded	4.8	DIY 20
10113389	8.0 mm	M8X16	13 mm	fully threaded	4.8	DIY 50
10002777	8.0 mm	M8X16	13 mm	fully threaded	4.8	STD 200
10113404	8.0 mm	M8X20	13 mm	fully threaded	4.8	DIY 10
10113404	8.0 mm	M8X20	13 mm	fully threaded	4.8	DIY 10
10113400	8.0 mm	M8X20	13 mm	fully threaded	4.8	DIY 50
10113409	8.0 mm	M8X20	13 mm	fully threaded	4.8	DIY 100
10002786	8.0 mm	M8X20	13 mm	fully threaded	4.8	STD 200
10113419	8.0 mm	M8X25	13 mm	fully threaded	4.8	DIY 10
10113419	8.0 mm	M8X25	13 mm	fully threaded	4.8	DIY 10
10113414	8.0 mm	M8X25	13 mm	fully threaded	4.8	DIY 50
10002799	8.0 mm	M8X25	13 mm	fully threaded	4.8	STD 200
10113429	8.0 mm	M8X30	13 mm	fully threaded	4.8	DIY 10
10113429	8.0 mm	M8X30	13 mm	fully threaded	4.8	DIY 10
10113424	8.0 mm	M8X30	13 mm	fully threaded	4.8	DIY 25
10113434	8.0 mm	M8X30	13 mm	fully threaded	4.8	DIY 100
10002808	8.0 mm	M8X30	13 mm	fully threaded	4.8	STD 200
10002824	8.0 mm	M8X35	13 mm	partial threaded	4.8	STD 200
10113444	8.0 mm	M8X40	13 mm	partial threaded	4.8	DIY 10
10113444	8.0 mm	M8X40	13 mm	partial threaded	4.8	DIY 10
10113439	8.0 mm	M8X40	13 mm	partial threaded	4.8	DIY 25
10113449	8.0 mm	M8X40	13 mm	partial threaded	4.8	DIY 100
10002828	8.0 mm	M8X40	13 mm	partial threaded	4.8	STD 200
10002841	8.0 mm	M8X45	13 mm	partial threaded	4.8	STD 200
10113459	8.0 mm	M8X50	13 mm	partial threaded	4.8	DIY 10
10113459	8.0 mm	M8X50	13 mm	partial threaded	4.8	DIY 10
10113454	8.0 mm	M8X50	13 mm	partial threaded	4.8	DIY 25
10113464	8.0 mm	M8X50	13 mm	partial threaded	4.8	DIY 100
10002845	8.0 mm	M8X50	13 mm	partial threaded	4.8	STD 200
10002859	8.0 mm	M8X55	13 mm	partial threaded	4.8	STD 200
10113474	8.0 mm	M8X60	13 mm	partial threaded	4.8	DIY 10
10113474	8.0 mm	M8X60	13 mm	partial threaded	4.8	DIY 10
10113469	8.0 mm	M8X60	13 mm	partial threaded	4.8	DIY 25
10113481	8.0 mm	M8X60	13 mm	partial threaded	4.8	DIY 100
10002864	8.0 mm	M8X60	13 mm	partial threaded	4.8	STD 200
10002877	8.0 mm	M8X65	13 mm	partial threaded	4.8	STD 200
10113491	8.0 mm	M8X70	13 mm	partial threaded	4.8	DIY 10
10113491	8.0 mm	M8X70	13 mm	partial threaded	4.8	DIY 10
10113486	8.0 mm	M8X70	13 mm	partial threaded	4.8	DIY 25
10113496	8.0 mm	M8X70	13 mm	partial threaded	4.8	DIY 100
10002882	8.0 mm	M8X70	13 mm	partial threaded	4.8	STD 200
10113505	8.0 mm	M8X80	13 mm	partial threaded	4.8	DIY 10
10113505	8.0 mm	M8X80	13 mm	partial threaded	4.8	DIY 10
10113499	8.0 mm	M8X80	13 mm	partial threaded	4.8	DIY 25
10113510	8.0 mm	M8X80	13 mm	partial threaded	4.8	DIY 50
10002897	8.0 mm	M8X80	13 mm	partial threaded	4.8	STD 200
10113515	8.0 mm	M8X90	13 mm	partial threaded	4.8	DIY 25
10113515	8.0 mm	M8X90	13 mm	partial threaded	4.8	DIY 25
10113520	8.0 mm	M8X90	13 mm	partial threaded	4.8	DIY 50
10002910	8.0 mm	M8X90	13 mm	partial threaded	4.8	STD 100
10113529	8.0 mm	M8X100	13 mm	partial threaded	4.8	DIY 10
10113529	8.0 mm	M8X100	13 mm	partial threaded	4.8	DIY 10
10113524	8.0 mm	M8X100	13 mm	partial threaded	4.8	DIY 25
10113534	8.0 mm	M8X100	13 mm	partial threaded	4.8	DIY 50
10002920	8.0 mm	M8X100	13 mm	partial threaded	4.8	STD 100
10002933	8.0 mm	M8X110	13 mm	partial threaded	4.8	STD 100
10113539	8.0 mm	M8X120	13 mm	partial threaded	4.8	DIY 10
10113539	8.0 mm	M8X120	13 mm	partial threaded	4.8	DIY 10
10113545	8.0 mm	M8X120	13 mm	partial threaded	4.8	DIY 50
10002937	8.0 mm	M8X120	13 mm	partial threaded	4.8	STD 100
10002946	8.0 mm	M8X130	13 mm	partial threaded	4.8	STD 100
10113550	8.0 mm	M8X140	13 mm	partial threaded	4.8	DIY 10
10113550	8.0 mm	M8X140	13 mm	partial threaded	4.8	DIY 10
10113555	8.0 mm	M8X140	13 mm	partial threaded	4.8	DIY 25
10002952	8.0 mm	M8X140	13 mm	partial threaded	4.8	STD 50
10002963	8.0 mm	M8X150	13 mm	partial threaded	4.8	STD 50
10113560	8.0 mm	M8X160	13 mm	partial threaded	4.8	DIY 25
10113560	8.0 mm	M8X160	13 mm	partial threaded	4.8	DIY 25
10002967	8.0 mm	M8X160	13 mm	partial threaded	4.8	STD 50
10002978	8.0 mm	M8X180	13 mm	partial threaded	4.8	STD 50
10002985	10.0 mm	M10X16	17 mm	fully threaded	4.8	STD 200
10113570	10.0 mm	M10X20	17 mm	fully threaded	4.8	DIY 10
10113570	10.0 mm	M10X20	17 mm	fully threaded	4.8	DIY 10
10113565	10.0 mm	M10X20	17 mm	fully threaded	4.8	DIY 25
10002989	10.0 mm	M10X20	17 mm	fully threaded	4.8	STD 200
10113580	10.0 mm	M10X25	17 mm	fully threaded	4.8	DIY 10
10113580	10.0 mm	M10X25	17 mm	fully threaded	4.8	DIY 10
10113575	10.0 mm	M10X25	17 mm	fully threaded	4.8	DIY 25
10003000	10.0 mm	M10X25	17 mm	fully threaded	4.8	STD 200
10113590	10.0 mm	M10X30	17 mm	fully threaded	4.8	DIY 10
10113590	10.0 mm	M10X30	17 mm	fully threaded	4.8	DIY 10
10113585	10.0 mm	M10X30	17 mm	fully threaded	4.8	DIY 25
10113594	10.0 mm	M10X30	17 mm	fully threaded	4.8	DIY 50
10003010	10.0 mm	M10X30	17 mm	fully threaded	4.8	STD 200
10003032	10.0 mm	M10X35	17 mm	fully threaded	4.8	STD 100
10113605	10.0 mm	M10X40	17 mm	partial threaded	4.8	DIY 10
10113605	10.0 mm	M10X40	17 mm	partial threaded	4.8	DIY 10
10113600	10.0 mm	M10X40	17 mm	partial threaded	4.8	DIY 25
10113610	10.0 mm	M10X40	17 mm	partial threaded	4.8	DIY 50
10003038	10.0 mm	M10X40	17 mm	partial threaded	4.8	STD 100
10003056	10.0 mm	M10X45	17 mm	partial threaded	4.8	STD 100
10113620	10.0 mm	M10X50	17 mm	partial threaded	4.8	DIY 10
10113620	10.0 mm	M10X50	17 mm	partial threaded	4.8	DIY 10
10113615	10.0 mm	M10X50	17 mm	partial threaded	4.8	DIY 25
10113625	10.0 mm	M10X50	17 mm	partial threaded	4.8	DIY 50
10003062	10.0 mm	M10X50	17 mm	partial threaded	4.8	STD 100
10003081	10.0 mm	M10X55	17 mm	partial threaded	4.8	STD 100
10113635	10.0 mm	M10X60	17 mm	partial threaded	4.8	DIY 10
10113635	10.0 mm	M10X60	17 mm	partial threaded	4.8	DIY 10
10113630	10.0 mm	M10X60	17 mm	partial threaded	4.8	DIY 25
10113640	10.0 mm	M10X60	17 mm	partial threaded	4.8	DIY 50
10003087	10.0 mm	M10X60	17 mm	partial threaded	4.8	STD 100
10003105	10.0 mm	M10X65	17 mm	partial threaded	4.8	STD 100
10113644	10.0 mm	M10X70	17 mm	partial threaded	4.8	DIY 10
10113644	10.0 mm	M10X70	17 mm	partial threaded	4.8	DIY 10
10113649	10.0 mm	M10X70	17 mm	partial threaded	4.8	DIY 50
10003112	10.0 mm	M10X70	17 mm	partial threaded	4.8	STD 100
10003126	10.0 mm	M10X75	17 mm	partial threaded	4.8	STD 100
10113659	10.0 mm	M10X80	17 mm	partial threaded	4.8	DIY 10
10113659	10.0 mm	M10X80	17 mm	partial threaded	4.8	DIY 10
10113654	10.0 mm	M10X80	17 mm	partial threaded	4.8	DIY 25
10113664	10.0 mm	M10X80	17 mm	partial threaded	4.8	DIY 50
10003133	10.0 mm	M10X80	17 mm	partial threaded	4.8	STD 100
10113669	10.0 mm	M10X90	17 mm	partial threaded	4.8	DIY 10
10113669	10.0 mm	M10X90	17 mm	partial threaded	4.8	DIY 10
10113674	10.0 mm	M10X90	17 mm	partial threaded	4.8	DIY 50
10003149	10.0 mm	M10X90	17 mm	partial threaded	4.8	STD 100
10113679	10.0 mm	M10X100	17 mm	partial threaded	4.8	DIY 10
10113679	10.0 mm	M10X100	17 mm	partial threaded	4.8	DIY 10
10113684	10.0 mm	M10X100	17 mm	partial threaded	4.8	DIY 50
10003170	10.0 mm	M10X100	17 mm	partial threaded	4.8	STD 100
10113689	10.0 mm	M10X110	17 mm	partial threaded	4.8	DIY 10
10113689	10.0 mm	M10X110	17 mm	partial threaded	4.8	DIY 10
10113694	10.0 mm	M10X110	17 mm	partial threaded	4.8	DIY 25
10003185	10.0 mm	M10X110	17 mm	partial threaded	4.8	STD 50
10113699	10.0 mm	M10X120	17 mm	partial threaded	4.8	DIY 25
10113699	10.0 mm	M10X120	17 mm	partial threaded	4.8	DIY 25
10003197	10.0 mm	M10X120	17 mm	partial threaded	4.8	STD 50
10003209	10.0 mm	M10X130	17 mm	partial threaded	4.8	STD 50
10113704	10.0 mm	M10X140	17 mm	partial threaded	4.8	DIY 25
10113704	10.0 mm	M10X140	17 mm	partial threaded	4.8	DIY 25
10003216	10.0 mm	M10X140	17 mm	partial threaded	4.8	STD 50
10003225	10.0 mm	M10X150	17 mm	partial threaded	4.8	STD 50
10113709	10.0 mm	M10X160	17 mm	partial threaded	4.8	DIY 25
10113709	10.0 mm	M10X160	17 mm	partial threaded	4.8	DIY 25
10003231	10.0 mm	M10X160	17 mm	partial threaded	4.8	STD 50
10003242	10.0 mm	M10X170	17 mm	partial threaded	4.8	STD 50
10113714	10.0 mm	M10X180	17 mm	partial threaded	4.8	DIY 25
10113714	10.0 mm	M10X180	17 mm	partial threaded	4.8	DIY 25
10003248	10.0 mm	M10X180	17 mm	partial threaded	4.8	STD 50
10113719	10.0 mm	M10X200	17 mm	partial threaded	4.8	DIY 25
10113719	10.0 mm	M10X200	17 mm	partial threaded	4.8	DIY 25
10003257	10.0 mm	M10X200	17 mm	partial threaded	4.8	STD 50
10003268	10.0 mm	M10X220	17 mm	partial threaded	4.8	STD 25
10003274	10.0 mm	M10X240	17 mm	partial threaded	4.8	STD 25
10003280	10.0 mm	M10X260	17 mm	partial threaded	4.8	STD 25
10003287	10.0 mm	M10X300	17 mm	partial threaded	4.8	STD 25
10003292	12.0 mm	M12X20	19 mm	fully threaded	4.8	STD 100
10003306	12.0 mm	M12X25	19 mm	fully threaded	4.8	STD 100
10113724	12.0 mm	M12X30	19 mm	fully threaded	4.8	DIY 10
10113724	12.0 mm	M12X30	19 mm	fully threaded	4.8	DIY 10
10003311	12.0 mm	M12X30	19 mm	fully threaded	4.8	STD 100
10003322	12.0 mm	M12X35	19 mm	fully threaded	4.8	STD 100
10113729	12.0 mm	M12X40	19 mm	fully threaded	4.8	DIY 10
10113729	12.0 mm	M12X40	19 mm	fully threaded	4.8	DIY 10
10113734	12.0 mm	M12X40	19 mm	fully threaded	4.8	DIY 25
10003328	12.0 mm	M12X40	19 mm	fully threaded	4.8	STD 100
10003342	12.0 mm	M12X45	19 mm	partial threaded	4.8	STD 100
10113739	12.0 mm	M12X50	19 mm	partial threaded	4.8	DIY 10
10113739	12.0 mm	M12X50	19 mm	partial threaded	4.8	DIY 10
10113743	12.0 mm	M12X50	19 mm	partial threaded	4.8	DIY 25
10003347	12.0 mm	M12X50	19 mm	partial threaded	4.8	STD 100
10003362	12.0 mm	M12X55	19 mm	partial threaded	4.8	STD 100
10113748	12.0 mm	M12X60	19 mm	partial threaded	4.8	DIY 10
10113748	12.0 mm	M12X60	19 mm	partial threaded	4.8	DIY 10
10113753	12.0 mm	M12X60	19 mm	partial threaded	4.8	DIY 25
10003368	12.0 mm	M12X60	19 mm	partial threaded	4.8	STD 100
10003377	12.0 mm	M12X65	19 mm	partial threaded	4.8	STD 50
10113758	12.0 mm	M12X70	19 mm	partial threaded	4.8	DIY 25
10113758	12.0 mm	M12X70	19 mm	partial threaded	4.8	DIY 25
10003381	12.0 mm	M12X70	19 mm	partial threaded	4.8	STD 50
10003388	12.0 mm	M12X75	19 mm	partial threaded	4.8	STD 50
10113763	12.0 mm	M12X80	19 mm	partial threaded	4.8	DIY 10
10113763	12.0 mm	M12X80	19 mm	partial threaded	4.8	DIY 10
10113768	12.0 mm	M12X80	19 mm	partial threaded	4.8	DIY 25
10003392	12.0 mm	M12X80	19 mm	partial threaded	4.8	STD 50
10113773	12.0 mm	M12X90	19 mm	partial threaded	4.8	DIY 25
10113773	12.0 mm	M12X90	19 mm	partial threaded	4.8	DIY 25
10003401	12.0 mm	M12X90	19 mm	partial threaded	4.8	STD 50
10113778	12.0 mm	M12X100	19 mm	partial threaded	4.8	DIY 10
10113778	12.0 mm	M12X100	19 mm	partial threaded	4.8	DIY 10
10113783	12.0 mm	M12X100	19 mm	partial threaded	4.8	DIY 25
10003409	12.0 mm	M12X100	19 mm	partial threaded	4.8	STD 50
30007813	12.0 mm	M12X110	19 mm	partial threaded	4.8	DIY 25
30007813	12.0 mm	M12X110	19 mm	partial threaded	4.8	DIY 25
10003419	12.0 mm	M12X110	19 mm	partial threaded	4.8	STD 50
10113788	12.0 mm	M12X120	19 mm	partial threaded	4.8	DIY 25
10113788	12.0 mm	M12X120	19 mm	partial threaded	4.8	DIY 25
10003428	12.0 mm	M12X120	19 mm	partial threaded	4.8	STD 50
10003440	12.0 mm	M12X130	19 mm	partial threaded	4.8	STD 50
10113793	12.0 mm	M12X140	19 mm	partial threaded	4.8	DIY 20
10113793	12.0 mm	M12X140	19 mm	partial threaded	4.8	DIY 20
10003444	12.0 mm	M12X140	19 mm	partial threaded	4.8	STD 50
10003460	12.0 mm	M12X150	19 mm	partial threaded	4.8	STD 50
10113803	12.0 mm	M12X160	19 mm	partial threaded	4.8	DIY 20
10003474	12.0 mm	M12X170	19 mm	partial threaded	4.8	STD 50
10003479	12.0 mm	M12X190	19 mm	partial threaded	4.8	STD 25
10003487	16.0 mm	M16X30	24 mm	fully threaded	4.8	STD 50
10003491	16.0 mm	M16X35	24 mm	fully threaded	4.8	STD 50
10003495	16.0 mm	M16X40	24 mm	fully threaded	4.8	STD 50
10003500	16.0 mm	M16X45	24 mm	fully threaded	4.8	STD 50
10003504	16.0 mm	M16X50	24 mm	fully threaded	4.8	STD 50
10003508	16.0 mm	M16X55	24 mm	partial threaded	4.8	STD 50
10003512	16.0 mm	M16X60	24 mm	partial threaded	4.8	STD 50
10003517	16.0 mm	M16X65	24 mm	partial threaded	4.8	STD 25
10003520	16.0 mm	M16X70	24 mm	partial threaded	4.8	STD 25
10003524	16.0 mm	M16X75	24 mm	partial threaded	4.8	STD 25
10003528	16.0 mm	M16X80	24 mm	partial threaded	4.8	STD 25
10003534	16.0 mm	M16X90	24 mm	partial threaded	4.8	STD 25
10003537	16.0 mm	M16X100	24 mm	partial threaded	4.8	STD 25
10003541	16.0 mm	M16X110	24 mm	partial threaded	4.8	STD 25
10003546	16.0 mm	M16X120	24 mm	partial threaded	4.8	STD 25
10003550	16.0 mm	M16X130	24 mm	partial threaded	4.8	STD 25
10003555	16.0 mm	M16X140	24 mm	partial threaded	4.8	STD 25
10003560	16.0 mm	M16X150	24 mm	partial threaded	4.8	STD 25
10003569	16.0 mm	M16X170	24 mm	partial threaded	4.8	STD 25
10003573	20.0 mm	M20X40	30 mm	fully threaded	4.8	STD 25
10003577	20.0 mm	M20X45	30 mm	fully threaded	4.8	STD 25
10003582	20.0 mm	M20X50	30 mm	fully threaded	4.8	STD 25
10003586	20.0 mm	M20X55	30 mm	fully threaded	4.8	STD 25
10003589	20.0 mm	M20X60	30 mm	fully threaded	4.8	STD 25
10003593	20.0 mm	M20X65	30 mm	partial threaded	4.8	STD 25
10003597	20.0 mm	M20X70	30 mm	partial threaded	4.8	STD 25
10003601	20.0 mm	M20X75	30 mm	partial threaded	4.8	STD 25
10003607	20.0 mm	M20X80	30 mm	partial threaded	4.8	STD 25
10003615	20.0 mm	M20X90	30 mm	partial threaded	4.8	STD 25
10003619	20.0 mm	M20X100	30 mm	partial threaded	4.8	STD 25
10003623	20.0 mm	M20X110	30 mm	partial threaded	4.8	STD 25
10003627	20.0 mm	M20X120	30 mm	partial threaded	4.8	STD 25
10003631	20.0 mm	M20X130	30 mm	partial threaded	4.8	STD 25
10003635	20.0 mm	M20X140	30 mm	partial threaded	4.8	STD 25
10003639	20.0 mm	M20X150	30 mm	partial threaded	4.8	STD 25
10003643	20.0 mm	M20X170	30 mm	partial threaded	4.8	STD 15
10003651	24.0 mm	M24X50	36 mm	fully threaded	4.8	STD 25
10003654	24.0 mm	M24X60	36 mm	fully threaded	4.8	STD 25
10003658	24.0 mm	M24X65	36 mm	fully threaded	4.8	STD 25
10003662	24.0 mm	M24X70	36 mm	fully threaded	4.8	STD 25
10003665	24.0 mm	M24X75	36 mm	fully threaded	4.8	STD 25
10003669	24.0 mm	M24X80	36 mm	partial threaded	4.8	STD 25
10003678	24.0 mm	M24X90	36 mm	partial threaded	4.8	STD 10
10003681	24.0 mm	M24X100	36 mm	partial threaded	4.8	STD 10
10003685	24.0 mm	M24X110	36 mm	partial threaded	4.8	STD 10
10003691	24.0 mm	M24X120	36 mm	partial threaded	4.8	STD 10
10003695	24.0 mm	M24X130	36 mm	partial threaded	4.8	STD 10
10003699	24.0 mm	M24X140	36 mm	partial threaded	4.8	STD 10
10003703	24.0 mm	M24X150	36 mm	partial threaded	4.8	STD 10

Product group 15325004

Produktfilter

thread diameter

size

drive size

thread type

Further service

Help

Social Media

Contact
