Product group 15446002

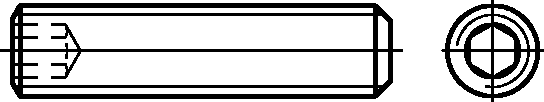

Gewindestifte mit Innensechskant und Kegelstumpf A2 nach DIN EN ISO 4026 (ehemals DIN 913)

Norm:	DIN 913, DIN ISO 4026
Former WGR no.:	3358

Produktfilter

Material number	thread diameter	size	drive size	material	type of thread	Packaging
10069837	2.5 mm	M2,5X3	1,3 mm	stainless steel A2	thread metric	STD 500
10069841	2.5 mm	M2,5X4	1,3 mm	stainless steel A2	thread metric	STD 200
10069865	3.0 mm	M3X3	1,5 mm	stainless steel A2	thread metric	STD 500
10069868	3.0 mm	M3X4	1,5 mm	stainless steel A2	thread metric	STD 500
10069874	3.0 mm	M3X5	1,5 mm	stainless steel A2	thread metric	STD 500
10069878	3.0 mm	M3X6	1,5 mm	stainless steel A2	thread metric	STD 500
10069882	3.0 mm	M3X8	1,5 mm	stainless steel A2	thread metric	STD 500
10069889	3.0 mm	M3X12	1,5 mm	stainless steel A2	thread metric	STD 500
10069897	3.0 mm	M3X20	1,5 mm	stainless steel A2	thread metric	STD 500
10069901	4.0 mm	M4X3	Bit size 2	stainless steel A2	thread metric	STD 500
10069909	4.0 mm	M4X4	Bit size 2	stainless steel A2	thread metric	STD 500
10069912	4.0 mm	M4X5	Bit size 2	stainless steel A2	thread metric	STD 500
10069916	4.0 mm	M4X6	Bit size 2	stainless steel A2	thread metric	STD 500
10069920	4.0 mm	M4X8	Bit size 2	stainless steel A2	thread metric	STD 500
10069924	4.0 mm	M4X10	Bit size 2	stainless steel A2	thread metric	STD 500
10069935	4.0 mm	M4X16	Bit size 2	stainless steel A2	thread metric	STD 500
10069943	4.0 mm	M4X20	Bit size 2	stainless steel A2	thread metric	STD 500
10069959	5.0 mm	M5X4	2,5 mm	stainless steel A2	thread metric	STD 500
10069963	5.0 mm	M5X5	2,5 mm	stainless steel A2	thread metric	STD 500
10069965	5.0 mm	M5X6	2,5 mm	stainless steel A2	thread metric	STD 500
10069969	5.0 mm	M5X8	2,5 mm	stainless steel A2	thread metric	STD 500
10069973	5.0 mm	M5X10	2,5 mm	stainless steel A2	thread metric	STD 500
10069977	5.0 mm	M5X12	2,5 mm	stainless steel A2	thread metric	STD 500
10069985	5.0 mm	M5X16	2,5 mm	stainless steel A2	thread metric	STD 500
10069989	5.0 mm	M5X20	2,5 mm	stainless steel A2	thread metric	STD 500
10069993	5.0 mm	M5X25	2,5 mm	stainless steel A2	thread metric	STD 200
10069997	5.0 mm	M5X30	2,5 mm	stainless steel A2	thread metric	STD 200
10070000	5.0 mm	M5X35	2,5 mm	stainless steel A2	thread metric	STD 200
10070019	6.0 mm	M6X6	Bit size 3	stainless steel A2	thread metric	STD 200
10070023	6.0 mm	M6X8	Bit size 3	stainless steel A2	thread metric	STD 200
10070027	6.0 mm	M6X10	Bit size 3	stainless steel A2	thread metric	STD 200
10070031	6.0 mm	M6X12	Bit size 3	stainless steel A2	thread metric	STD 200
10070039	6.0 mm	M6X16	Bit size 3	stainless steel A2	thread metric	STD 200
10070047	6.0 mm	M6X20	Bit size 3	stainless steel A2	thread metric	STD 200
10070051	6.0 mm	M6X25	Bit size 3	stainless steel A2	thread metric	STD 200
10070054	6.0 mm	M6X30	Bit size 3	stainless steel A2	thread metric	STD 200
10070058	6.0 mm	M6X35	Bit size 3	stainless steel A2	thread metric	STD 200
10070062	6.0 mm	M6X40	Bit size 3	stainless steel A2	thread metric	STD 200
10070078	8.0 mm	M8X8	Bit size 4	stainless steel A2	thread metric	STD 200
10070082	8.0 mm	M8X10	Bit size 4	stainless steel A2	thread metric	STD 200
10070085	8.0 mm	M8X12	Bit size 4	stainless steel A2	thread metric	STD 200
10070088	8.0 mm	M8X16	Bit size 4	stainless steel A2	thread metric	STD 200
10070092	8.0 mm	M8X20	Bit size 4	stainless steel A2	thread metric	STD 200
10070096	8.0 mm	M8X25	Bit size 4	stainless steel A2	thread metric	STD 200
10070100	8.0 mm	M8X30	Bit size 4	stainless steel A2	thread metric	STD 200
10070104	8.0 mm	M8X35	Bit size 4	stainless steel A2	thread metric	STD 200
10070108	8.0 mm	M8X40	Bit size 4	stainless steel A2	thread metric	STD 200
10070112	8.0 mm	M8X45	Bit size 4	stainless steel A2	thread metric	STD 200
10070116	8.0 mm	M8X50	Bit size 4	stainless steel A2	thread metric	STD 200
10070165	10.0 mm	M10X20	5 mm	stainless steel A2	thread metric	STD 200
10070181	10.0 mm	M10X50	5 mm	stainless steel A2	thread metric	STD 100
10070227	12.0 mm	M12X50	6 mm	stainless steel A2	thread metric	STD 100
10070230	12.0 mm	M12X60	6 mm	stainless steel A2	thread metric	STD 100
