Product group 15446005

Gewindestifte mit Innensechskant und Spitze A2 DIN EN ISO 4027 (ehemals DIN 914)
Norm: DIN 914, DIN ISO 4027
Former WGR no.: 3359

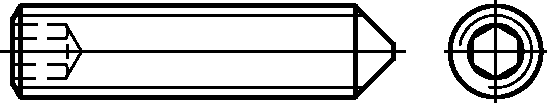

Sketch Gewindestifte mit Innensechskant und Spitze A2 DIN EN ISO 4027 (ehemals DIN 914)

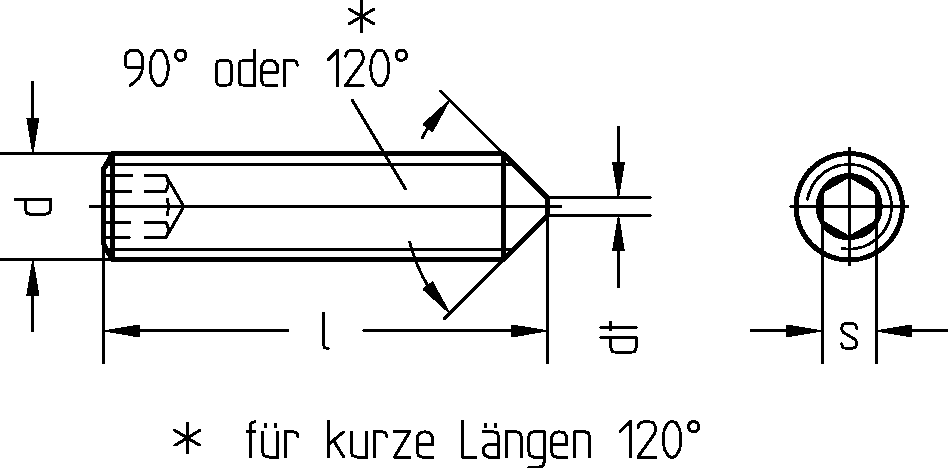

Sketch 2 Gewindestifte mit Innensechskant und Spitze A2 DIN EN ISO 4027 (ehemals DIN 914)

Produktfilter

thread diameter

Alle 3.0 mm 4.0 mm 5.0 mm 6.0 mm 8.0 mm 10.0 mm

size

Alle M3X3 M3X4 M3X5 M3X6 M3X10 M4X4 M4X5 M4X6 M4X8 M4X10 M4X16 M4X20 M5X5 M5X6 M5X8 M5X10 M5X12 M5X16 M6X5 M6X6 M6X8 M6X10 M6X12 M6X16 M6X20 M6X60 M8X8 M8X10 M8X12 M8X16 M8X20 M10X30 M10X40

drive size

Alle 1,5 mm Bit size 2 2,5 mm Bit size 3 Bit size 4 5 mm

nominal length

Alle 3.0 mm 4.0 mm 5.0 mm 6.0 mm 10.0 mm 8.0 mm 16.0 mm 20.0 mm 12.0 mm 60.0 mm 30.0 mm 40.0 mm
Material number thread diameter size drive size material type of thread Packaging Quantity
10070311 3.0 mm M3X3 1,5 mm stainless steel A2 thread metric STD 500
Add to cart
10070314 3.0 mm M3X4 1,5 mm stainless steel A2 thread metric STD 500
Add to cart
10070318 3.0 mm M3X5 1,5 mm stainless steel A2 thread metric STD 500
Add to cart
10070322 3.0 mm M3X6 1,5 mm stainless steel A2 thread metric STD 500
Add to cart
10070330 3.0 mm M3X10 1,5 mm stainless steel A2 thread metric STD 500
Add to cart
10070342 4.0 mm M4X4 Bit size 2 stainless steel A2 thread metric STD 500
Add to cart
10070346 4.0 mm M4X5 Bit size 2 stainless steel A2 thread metric STD 500
Add to cart
10070350 4.0 mm M4X6 Bit size 2 stainless steel A2 thread metric STD 500
Add to cart
10070352 4.0 mm M4X8 Bit size 2 stainless steel A2 thread metric STD 500
Add to cart
10070356 4.0 mm M4X10 Bit size 2 stainless steel A2 thread metric STD 500
Add to cart
10070364 4.0 mm M4X16 Bit size 2 stainless steel A2 thread metric STD 500
Add to cart
10070368 4.0 mm M4X20 Bit size 2 stainless steel A2 thread metric STD 500
Add to cart
10070384 5.0 mm M5X5 2,5 mm stainless steel A2 thread metric STD 500
Add to cart
10070388 5.0 mm M5X6 2,5 mm stainless steel A2 thread metric STD 500
Add to cart
10070396 5.0 mm M5X8 2,5 mm stainless steel A2 thread metric STD 500
Add to cart
10070399 5.0 mm M5X10 2,5 mm stainless steel A2 thread metric STD 500
Add to cart
10070403 5.0 mm M5X12 2,5 mm stainless steel A2 thread metric STD 500
Add to cart
10070407 5.0 mm M5X16 2,5 mm stainless steel A2 thread metric STD 500
Add to cart
10070429 6.0 mm M6X5 Bit size 3 stainless steel A2 thread metric STD 200
Add to cart
10070433 6.0 mm M6X6 Bit size 3 stainless steel A2 thread metric STD 200
Add to cart
10070437 6.0 mm M6X8 Bit size 3 stainless steel A2 thread metric STD 200
Add to cart
10070441 6.0 mm M6X10 Bit size 3 stainless steel A2 thread metric STD 200
Add to cart
10070446 6.0 mm M6X12 Bit size 3 stainless steel A2 thread metric STD 200
Add to cart
10070454 6.0 mm M6X16 Bit size 3 stainless steel A2 thread metric STD 200
Add to cart
10070458 6.0 mm M6X20 Bit size 3 stainless steel A2 thread metric STD 200
Add to cart
10070471 6.0 mm M6X60 Bit size 3 stainless steel A2 thread metric STD 200
Add to cart
10070479 8.0 mm M8X8 Bit size 4 stainless steel A2 thread metric STD 200
Add to cart
10070484 8.0 mm M8X10 Bit size 4 stainless steel A2 thread metric STD 200
Add to cart
10070488 8.0 mm M8X12 Bit size 4 stainless steel A2 thread metric STD 200
Add to cart
10070495 8.0 mm M8X16 Bit size 4 stainless steel A2 thread metric STD 200
Add to cart
10070498 8.0 mm M8X20 Bit size 4 stainless steel A2 thread metric STD 200
Add to cart
10070537 10.0 mm M10X30 5 mm stainless steel A2 thread metric STD 100
Add to cart
10070544 10.0 mm M10X40 5 mm stainless steel A2 thread metric STD 100
Add to cart
