DIN 34805-2 Screws with flattened Half-round head 010.9 Part 2: Screws with collar and power attack Hexalobular socket, M4X12

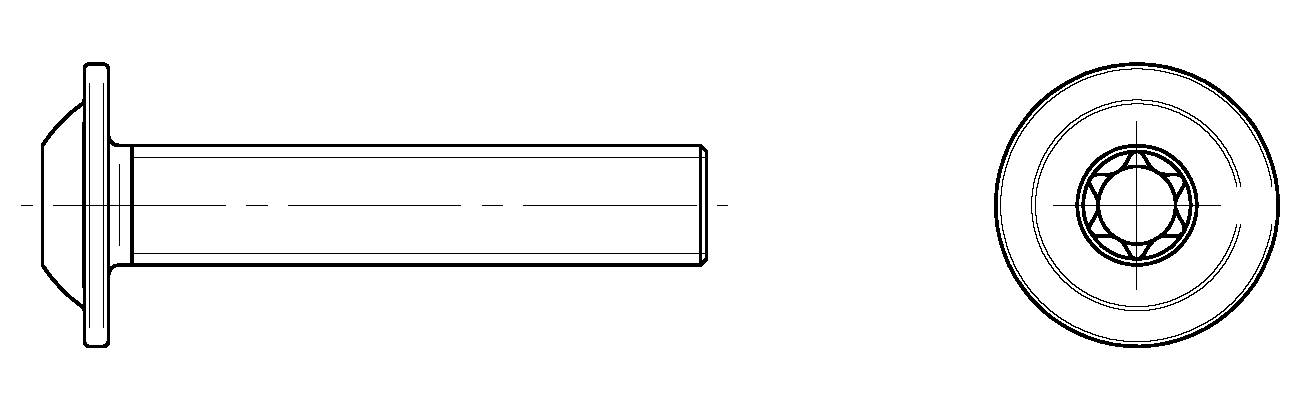

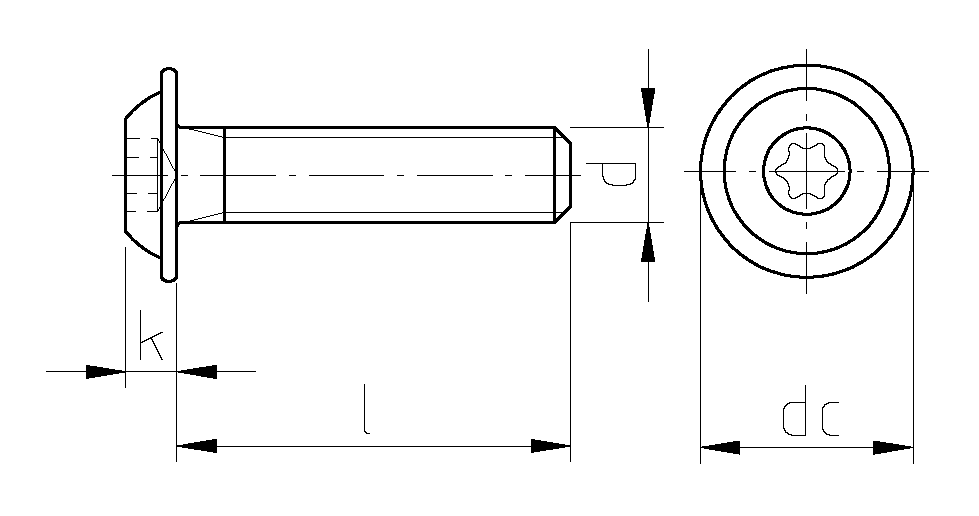

Illustration similar
- Material:
- 10194290
- EAN:
- 4026303443203
- Product group:
- 15331047 HRKO SHR+I6R+BND3 a.ISO 7380-2
- Surface:
- 000 uncoated
- Paket size:
- 500
- Packaging:
- (STD)
- Weight [500 Unit]:
- 0.66 KG
- Old article number:
- 0/0353/000/4,0/12//01
- thread diameter:
- 4.0 mm
- size:
- M4X12
- drive size:
- hexalobe 20
- drive type-fastener:
- hexalobe
- thread type:
- standard thread
- strength class-fastener:
- 10.9
- nominal length:
- 12.0 mm
- material:
- steel
- head shape:
- round head w.collar
- type of thread:
- thread metric
- thread direction:
- right
- standard type:
- DIN
- standard number:
- 34805
- current standard:
- DIN 34805-2
Price:
on request
