Product shop Product shop DIN/EN/ISO standard parts 7338-74361 DIN 7984 socket head screws with hexagon socket

Niedriger Kopf 8.8

ZYKO SHR+I6K low DIN7984

ZYKO SHR+I6K low DIN 7984

Product group 15341105

Zylinderschrauben mit Innensechskant, niedriger Kopf 8.8

Norm:	DIN 7984
Former WGR no.:	0304

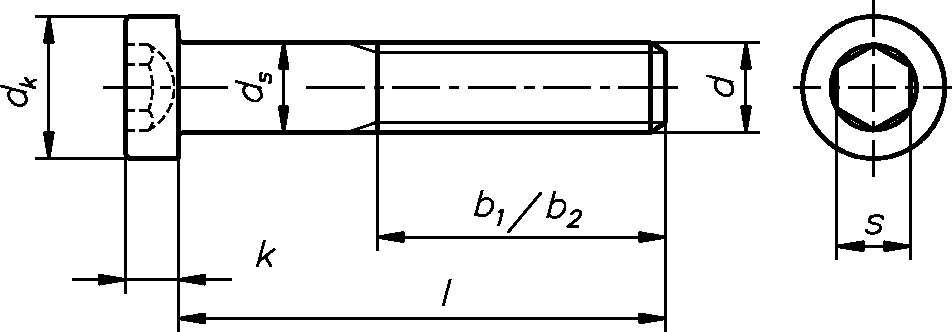

Sketch Zylinderschrauben mit Innensechskant, niedriger Kopf 8.8

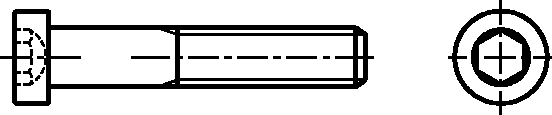

Sketch 2 Zylinderschrauben mit Innensechskant, niedriger Kopf 8.8

Surfaces

000 uncoated

001 galvanized

003 Zinc 8my thick film passivated sealed lubricated RW 0.09-0.14 DHN19.001

007 galvanized A3B

011 galvanized DBL 8451.22

017 galvanized yellow passivated lubricated

020 zinc 8my thick film passivated sealed DHN19.001

021 galvanized yellow passivated

038 galvanized 8my thick film passivated sealed lubricated RW 0.12-0.18 DHN19.001

039 ZnNi//Cn//T2 thick film passivated min. 720h RR

040 galvanized min. 8my thick film passivated

044 Zn/Fe black passivated sealed

051 black galvanized

068 zinc nickel 8my sealed black clamping coated DIN 267 T28

074 nickel plated

076 black galvanized

091 phosphated

098 Zn/Fe black passivated sealed clamping coated DIN267 T28

119 galvanized thick film passivated sealed Fe//Zn5//Cn//T2

135 Adhesive coated DIN 267 T27

138 Tuflok stain coated

148 t647 silver gray VW TL 245

155 Poly-lok stain coated green

156 Precote 80 coated

157 Precote 85 coated

165 Precote 80-8 coated

166 Zinc-nickel 8my sealed black

168 zinc plate 720h lubricated RW 0.09-0.14 DHN19.001

182 Zinc plate 720h lubricated RW 0.12-0.18 DHN19.001

185 zinc plate 720h lubricated RW 0.12-0.18 DHN19.001

186 zinc plate fl zn nc 720h - L lubricated

188 zinc plate fl zn nc 720h

190 galvanized adhesive coated DIN 267 T27

191 galvanized yellow passivated adhesive coated DIN 267 T27

192 black galvanized adhesive coated DIN 267 T27

196 galvanized Tuflok coated all around

200 galvanized Tuflok stain coated

202 Black galvanized Tuflock stain coated

205 galvanized FSB coated

206 galvanized Long-lok coated

209 galvanized Precote 30 coated

210 galvanized Precote 80 coated

222 galvanized clamping coated DIN 267 T28

232 zinc plate fl zn nc 720h adhesive coated DIN 267 T27

249 zinc plate fl zn nc 720h adhesive coated DIN267 T27

252 Form A thread up to almost the head

283 zinc plate 720h lubricated RW 0.09-0.14 DHN19.001

284 zinc plate fl zn nc - 720h - L lubricated

288 zinc plate fl zn nc – 720h - L lubricated

301 galvanized with locking varnish Sk

305 CH KL Polyfleck 4-6P x 2-3P A2F Countersink on the inner hexagon

312 galvanized form A thread up to almost the head

321 galvanized A2F with countersink on the hexagon socket

1955 galvanized VC-3 coated

5937 Precote 30-3 coated

5944 Fe//ZnNi5//Cn//T0 DIN EN ISO 19598

6802 galvanized thick film passivated sealed min 8 my ISO4042

6803 galvanized Zn/Fe black sealed min 8 my ISO4042

6813 Zn/Fe black passivated sealed m.8my ISO4042 coated DIN267 T28

6827 Geomet 321A coated DIN267 T28

6853 Zn/Fe black passivated sealed Tuflok stain coated

6855 Geomet 321 A

6920 ZnNi transparent VW TL 244 r640

6921 ZnNi transparent VW TL 244 r640 Tuflok stain coated

6998 coated according to customer requirements

9846 DBL 9440.40 Geomet 321 +VL 720h

9855 DBL 9460.40 Dacromet MK blue

9874 DBL 9460.04 galvanized MK blue

9876 DBL 9460.13 galvanized yellow MK yellow

9926 DBL 8451.16 Zinc trapas thick film passivated sealed 240h

9935 DBL 9400.40 thin-film phosphated and lubricated

9946 galvanized Precote 80 coated

9951 galvanized Polyamide all around according to DIN 267 T28

9958 galvanized polyamide stain coated DIN 267 T28

9983 galvanized Precote 85 coated

9998 coated according to customer requirements

9999 Special surface

Produktfilter

Material number	thread diameter	size	drive size	nominal length	standard type	Packaging
10072901	3.0 mm	M3X5	2,0 mm	5.0 mm	DIN	STD 100
10072905	3.0 mm	M3X6	2,0 mm	6.0 mm	DIN	STD 500
10072909	3.0 mm	M3X8	2,0 mm	8.0 mm	DIN	STD 500
10072913	3.0 mm	M3X10	2,0 mm	10.0 mm	DIN	STD 500
10072917	3.0 mm	M3X12	2,0 mm	12.0 mm	DIN	STD 500
10072922	3.0 mm	M3X16	2,0 mm	16.0 mm	DIN	STD 500
10072926	3.0 mm	M3X18	2,0 mm	18.0 mm	DIN	STD 500
10072930	3.0 mm	M3X20	2,0 mm	20.0 mm	DIN	STD 500
10182396	3.0 mm	M3X35	Bit size 2	35.0 mm	DIN	STD 200
10072934	4.0 mm	M4X6	2,5 mm	6.0 mm	DIN	STD 500
10072938	4.0 mm	M4X8	2,5 mm	8.0 mm	DIN	STD 500
10072941	4.0 mm	M4X10	2,5 mm	10.0 mm	DIN	STD 500
10072946	4.0 mm	M4X12	2,5 mm	12.0 mm	DIN	STD 500
10072950	4.0 mm	M4X14	2,5 mm	14.0 mm	DIN	STD 500
10072954	4.0 mm	M4X16	2,5 mm	16.0 mm	DIN	STD 500
10072958	4.0 mm	M4X20	2,5 mm	20.0 mm	DIN	STD 500
10072963	4.0 mm	M4X25	2,5 mm	25.0 mm	DIN	STD 500
10072967	4.0 mm	M4X30	2,5 mm	30.0 mm	DIN	STD 500
10072971	4.0 mm	M4X35	2,5 mm	35.0 mm	DIN	STD 500
10072976	4.0 mm	M4X40	2,5 mm	40.0 mm	DIN	STD 500
10072980	4.0 mm	M4X45	2,5 mm	45.0 mm	DIN	STD 200
10072984	4.0 mm	M4X50	2,5 mm	50.0 mm	DIN	STD 500
10072988	5.0 mm	M5X8	3,0 mm	8.0 mm	DIN	STD 500
10072992	5.0 mm	M5X10	3,0 mm	10.0 mm	DIN	STD 500
10072994	5.0 mm	M5X12	3,0 mm	12.0 mm	DIN	STD 500
10072999	5.0 mm	M5X16	3,0 mm	16.0 mm	DIN	STD 500
10073003	5.0 mm	M5X20	3,0 mm	20.0 mm	DIN	STD 500
10073007	5.0 mm	M5X22	3,0 mm	22.0 mm	DIN	STD 500
10073010	5.0 mm	M5X25	3,0 mm	25.0 mm	DIN	STD 500
10073014	5.0 mm	M5X30	3,0 mm	30.0 mm	DIN	STD 500
10073018	5.0 mm	M5X35	3,0 mm	35.0 mm	DIN	STD 200
10073022	5.0 mm	M5X40	3,0 mm	40.0 mm	DIN	STD 200
10073026	5.0 mm	M5X45	3,0 mm	45.0 mm	DIN	STD 200
10073030	5.0 mm	M5X50	3,0 mm	50.0 mm	DIN	STD 200
10073038	6.0 mm	M6X8	4,0 mm	8.0 mm	DIN	STD 500
10073038	6.0 mm	M6X8	4,0 mm	8.0 mm	DIN	STD 500
10073034	6.0 mm	M6X8	4,0 mm	8.0 mm	DIN	STD 500
10073041	6.0 mm	M6X10	4,0 mm	10.0 mm	DIN	STD 500
10073045	6.0 mm	M6X12	4,0 mm	12.0 mm	DIN	STD 500
10073049	6.0 mm	M6X14	4,0 mm	14.0 mm	DIN	STD 500
10073053	6.0 mm	M6X16	4,0 mm	16.0 mm	DIN	STD 500
10073057	6.0 mm	M6X18	4,0 mm	18.0 mm	DIN	STD 500
10073061	6.0 mm	M6X20	4,0 mm	20.0 mm	DIN	STD 500
10073065	6.0 mm	M6X22	4,0 mm	22.0 mm	DIN	STD 500
10073069	6.0 mm	M6X25	4,0 mm	25.0 mm	DIN	STD 500
10073073	6.0 mm	M6X30	4,0 mm	30.0 mm	DIN	STD 500
10073077	6.0 mm	M6X35	4,0 mm	35.0 mm	DIN	STD 200
10073081	6.0 mm	M6X40	4,0 mm	40.0 mm	DIN	STD 200
10073085	6.0 mm	M6X45	4,0 mm	45.0 mm	DIN	STD 200
10073089	6.0 mm	M6X50	4,0 mm	50.0 mm	DIN	STD 200
10073093	6.0 mm	M6X60	4,0 mm	60.0 mm	DIN	STD 200
10073098	8.0 mm	M8X10	5 mm	10.0 mm	DIN	STD 200
10073101	8.0 mm	M8X12	5 mm	12.0 mm	DIN	STD 200
10073105	8.0 mm	M8X16	5 mm	16.0 mm	DIN	STD 200
10073109	8.0 mm	M8X18	5 mm	18.0 mm	DIN	STD 200
10073113	8.0 mm	M8X20	5 mm	20.0 mm	DIN	STD 200
10073118	8.0 mm	M8X22	5 mm	22.0 mm	DIN	STD 200
10073122	8.0 mm	M8X25	5 mm	25.0 mm	DIN	STD 200
10073126	8.0 mm	M8X30	5 mm	30.0 mm	DIN	STD 200
10073129	8.0 mm	M8X35	5 mm	35.0 mm	DIN	STD 200
10073133	8.0 mm	M8X40	5 mm	40.0 mm	DIN	STD 200
10073136	8.0 mm	M8X45	5 mm	45.0 mm	DIN	STD 200
10073140	8.0 mm	M8X50	5 mm	50.0 mm	DIN	STD 200
10073144	8.0 mm	M8X55	5 mm	55.0 mm	DIN	STD 200
10073148	8.0 mm	M8X60	5 mm	60.0 mm	DIN	STD 100
10073152	8.0 mm	M8X65	5 mm	65.0 mm	DIN	STD 200
10073155	8.0 mm	M8X70	5 mm	70.0 mm	DIN	STD 200
10073159	8.0 mm	M8X75	5 mm	75.0 mm	DIN	STD 200
10073163	8.0 mm	M8X80	5 mm	80.0 mm	DIN	STD 200
10073167	8.0 mm	M8X90	5 mm	90.0 mm	DIN	STD 100
10073171	8.0 mm	M8X100	5 mm	100.0 mm	DIN	STD 100
10073175	8.0 mm	M8X110	5 mm	110.0 mm	DIN	STD 100
10073179	8.0 mm	M8X120	5 mm	120.0 mm	DIN	STD 100
10073183	8.0 mm	M8X130	5 mm	130.0 mm	DIN	STD 100
10073188	8.0 mm	M8X140	5 mm	140.0 mm	DIN	STD 50
10073192	8.0 mm	M8X150	5 mm	150.0 mm	DIN	STD 50
10073196	10.0 mm	M10X12	7 mm	12.0 mm	DIN	STD 200
10073200	10.0 mm	M10X16	7 mm	16.0 mm	DIN	STD 200
10073204	10.0 mm	M10X18	7 mm	18.0 mm	DIN	STD 200
10073208	10.0 mm	M10X20	7 mm	20.0 mm	DIN	STD 200
10073211	10.0 mm	M10X22	7 mm	22.0 mm	DIN	STD 200
10073215	10.0 mm	M10X25	7 mm	25.0 mm	DIN	STD 200
10073219	10.0 mm	M10X30	7 mm	30.0 mm	DIN	STD 200
10073223	10.0 mm	M10X35	7 mm	35.0 mm	DIN	STD 100
10073227	10.0 mm	M10X40	7 mm	40.0 mm	DIN	STD 100
10073231	10.0 mm	M10X45	7 mm	45.0 mm	DIN	STD 100
10073235	10.0 mm	M10X50	7 mm	50.0 mm	DIN	STD 100
10073239	10.0 mm	M10X55	7 mm	55.0 mm	DIN	STD 100
10073243	10.0 mm	M10X60	7 mm	60.0 mm	DIN	STD 100
10073247	10.0 mm	M10X65	7 mm	65.0 mm	DIN	STD 100
10073251	10.0 mm	M10X70	7 mm	70.0 mm	DIN	STD 100
10073255	10.0 mm	M10X80	7 mm	80.0 mm	DIN	STD 50
10073255	10.0 mm	M10X80	7 mm	80.0 mm	DIN	STD 50
10182202	10.0 mm	M10X80	7 mm	80.0 mm	DIN	STD 50
10073259	10.0 mm	M10X90	7 mm	90.0 mm	DIN	STD 50
10073263	10.0 mm	M10X100	7 mm	100.0 mm	DIN	STD 50
10073267	10.0 mm	M10X110	7 mm	110.0 mm	DIN	STD 50
10073271	10.0 mm	M10X120	7 mm	120.0 mm	DIN	STD 50
10073275	10.0 mm	M10X130	7 mm	130.0 mm	DIN	STD 50
10073279	10.0 mm	M10X140	7 mm	140.0 mm	DIN	STD 50
10073283	10.0 mm	M10X150	7 mm	150.0 mm	DIN	STD 50
10073287	12.0 mm	M12X20	8 mm	20.0 mm	DIN	STD 100
10073291	12.0 mm	M12X25	8 mm	25.0 mm	DIN	STD 100
10073294	12.0 mm	M12X30	8 mm	30.0 mm	DIN	STD 100
10073298	12.0 mm	M12X35	8 mm	35.0 mm	DIN	STD 100
10073302	12.0 mm	M12X40	8 mm	40.0 mm	DIN	STD 100
10073306	12.0 mm	M12X45	8 mm	45.0 mm	DIN	STD 100
10073310	12.0 mm	M12X50	8 mm	50.0 mm	DIN	STD 100
10073314	12.0 mm	M12X55	8 mm	55.0 mm	DIN	STD 50
10073318	12.0 mm	M12X60	8 mm	60.0 mm	DIN	STD 100
10073322	12.0 mm	M12X65	8 mm	65.0 mm	DIN	STD 50
10073326	12.0 mm	M12X70	8 mm	70.0 mm	DIN	STD 50
10073330	12.0 mm	M12X80	8 mm	80.0 mm	DIN	STD 50
10073333	12.0 mm	M12X90	8 mm	90.0 mm	DIN	STD 50
10073337	12.0 mm	M12X100	8 mm	100.0 mm	DIN	STD 50
10073341	12.0 mm	M12X110	8 mm	110.0 mm	DIN	STD 50
10073345	12.0 mm	M12X120	8 mm	120.0 mm	DIN	STD 50
10073349	12.0 mm	M12X130	8 mm	130.0 mm	DIN	STD 50
10073353	12.0 mm	M12X140	8 mm	140.0 mm	DIN	STD 50
10073357	12.0 mm	M12X150	8 mm	150.0 mm	DIN	STD 50
10073361	12.0 mm	M12X160	8 mm	160.0 mm	DIN	STD 25
10073365	12.0 mm	M12X170	8 mm	170.0 mm	DIN	STD 50
10073369	12.0 mm	M12X180	8 mm	180.0 mm	DIN	STD 50
10073373	12.0 mm	M12X200	8 mm	200.0 mm	DIN	STD 50
10073377	14.0 mm	M14X20	10 mm	20.0 mm	DIN	STD 100
10073381	14.0 mm	M14X22	10 mm	22.0 mm	DIN	STD 100
10073385	14.0 mm	M14X30	10 mm	30.0 mm	DIN	STD 100
10073389	16.0 mm	M16X25	12 mm	25.0 mm	DIN	STD 50
10073393	16.0 mm	M16X30	12 mm	30.0 mm	DIN	STD 50
10073396	16.0 mm	M16X35	12 mm	35.0 mm	DIN	STD 50
10073400	16.0 mm	M16X40	12 mm	40.0 mm	DIN	STD 50
10073404	16.0 mm	M16X45	12 mm	45.0 mm	DIN	STD 50
10073409	16.0 mm	M16X50	12 mm	50.0 mm	DIN	STD 50
10073413	16.0 mm	M16X55	12 mm	55.0 mm	DIN	STD 50
10073417	16.0 mm	M16X60	12 mm	60.0 mm	DIN	STD 50
10073421	16.0 mm	M16X65	12 mm	65.0 mm	DIN	STD 25
10073425	16.0 mm	M16X70	12 mm	70.0 mm	DIN	STD 25
10073429	16.0 mm	M16X80	12 mm	80.0 mm	DIN	STD 25
10073433	16.0 mm	M16X90	12 mm	90.0 mm	DIN	STD 25
10073437	16.0 mm	M16X100	12 mm	100.0 mm	DIN	STD 25
10073440	16.0 mm	M16X110	12 mm	110.0 mm	DIN	STD 25
10073444	16.0 mm	M16X120	12 mm	120.0 mm	DIN	STD 25
10073448	16.0 mm	M16X130	12 mm	130.0 mm	DIN	STD 25
10073452	16.0 mm	M16X140	12 mm	140.0 mm	DIN	STD 25
10073456	16.0 mm	M16X150	12 mm	150.0 mm	DIN	STD 25
10073459	16.0 mm	M16X160	12 mm	160.0 mm	DIN	STD 25
10073463	16.0 mm	M16X170	12 mm	170.0 mm	DIN	STD 25
10073467	16.0 mm	M16X180	12 mm	180.0 mm	DIN	STD 25
10073471	16.0 mm	M16X200	12 mm	200.0 mm	DIN	STD 25
10073475	20.0 mm	M20X30	14 mm	30.0 mm	DIN	STD 25
10073480	20.0 mm	M20X35	14 mm	35.0 mm	DIN	STD 25
10073484	20.0 mm	M20X40	14 mm	40.0 mm	DIN	STD 25
10073488	20.0 mm	M20X45	14 mm	45.0 mm	DIN	STD 25
10073492	20.0 mm	M20X50	14 mm	50.0 mm	DIN	STD 25
10073496	20.0 mm	M20X55	14 mm	55.0 mm	DIN	STD 25
10073500	20.0 mm	M20X60	14 mm	60.0 mm	DIN	STD 25
10073503	20.0 mm	M20X65	14 mm	65.0 mm	DIN	STD 25
10073508	20.0 mm	M20X70	14 mm	70.0 mm	DIN	STD 25
10073511	20.0 mm	M20X75	14 mm	75.0 mm	DIN	STD 25
10073515	20.0 mm	M20X80	14 mm	80.0 mm	DIN	STD 25
10073519	20.0 mm	M20X90	14 mm	90.0 mm	DIN	STD 25
10073523	20.0 mm	M20X100	14 mm	100.0 mm	DIN	STD 25
10073527	20.0 mm	M20X120	14 mm	120.0 mm	DIN	STD 25
10073531	20.0 mm	M20X130	14 mm	130.0 mm	DIN	STD 25
10073535	20.0 mm	M20X140	14 mm	140.0 mm	DIN	STD 25
10073540	20.0 mm	M20X150	14 mm	150.0 mm	DIN	STD 25
10073544	20.0 mm	M20X160	14 mm	160.0 mm	DIN	STD 10
10073548	20.0 mm	M20X170	14 mm	170.0 mm	DIN	STD 10
10073552	20.0 mm	M20X180	14 mm	180.0 mm	DIN	STD 10
10073555	20.0 mm	M20X200	14 mm	200.0 mm	DIN	STD 25

Product group 15341105

Surfaces

Produktfilter

thread diameter

size

drive size

nominal length

Further service

Help

Social Media

Contact
