Product shop Product shop DIN/EN/ISO standard parts 931-988 DIN 961 hexagonal screws thread to head

Feingewinde mit Gewinde bis Kopf 8.8

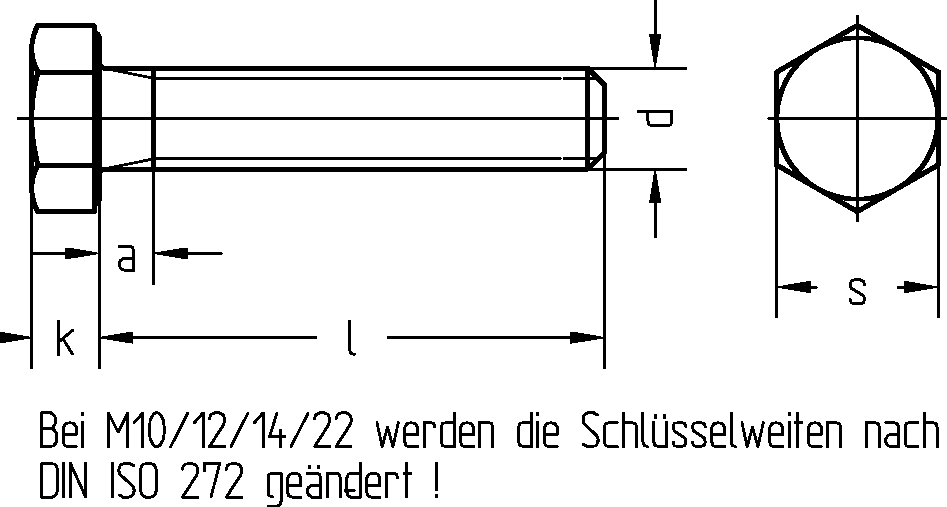

Sketch 2 Sechskantschrauben,Feingewinde mit Gewinde bis Kopf 8.8

Sketch 2 Sechskantschrauben,Feingewinde mit Gewinde bis Kopf 8.8

6KT SHR VG FG DIN 961

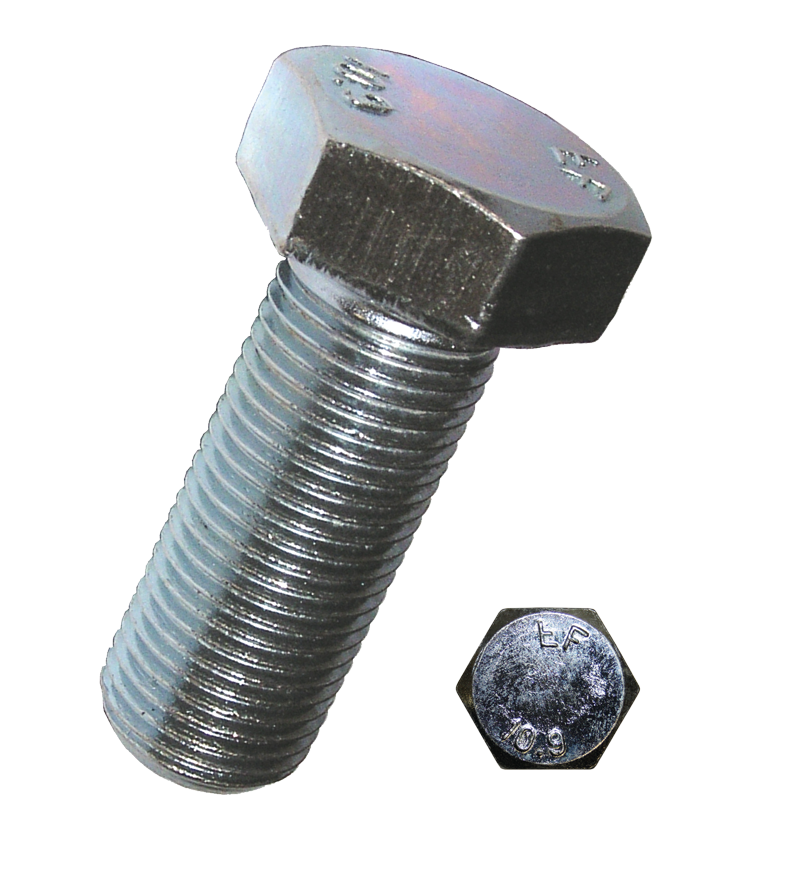

Article picture 6KT SHR VG FG DIN 961

Article picture 6KT SHR VG FG DIN 961

Product group 15331017

6KT SHR VG FG DIN 961

Norm:	DIN 961, DIN ISO 8676
Former WGR no.:	0262

Article picture 6KT SHR VG FG DIN 961

Sketch 6KT SHR VG FG DIN 961

Surfaces

000 uncoated

002 galvanized tempered

135 Adhesive coated DIN 267 T27

182 Zinc plate 720h lubricated RW 0.12-0.18 DHN19.001

Produktfilter

thread diameter

Alle 10.0 mm 12.0 mm 14.0 mm 16.0 mm 20.0 mm

size

Alle M10X20X1 M10X25X1 M10X30X1 M10X35X1 M12X30X1,5 M12X35X1,5 M12X40X1,5 M12X45X1,5 M12X50X1,5 M14X30X1,5 M14X35X1,5 M14X40X1,5 M14X45X1,5 M14X50X1,5 M16X30X1,5 M16X35X1,5 M16X40X1,5 M16X50X1,5 M20X80X2

drive size

Alle 17 mm 19 mm 22 mm 24 mm 30 mm

nominal length

Alle 20.0 mm 25.0 mm 30.0 mm 35.0 mm 40.0 mm 45.0 mm 50.0 mm 80.0 mm

thread pitch

Alle 1.0 mm 1.5 mm 2.0 mm

Material number	thread diameter	size	drive size	strength class-fastener	drive type-fastener	Packaging	Quantity
10116216	10.0 mm	M10X20X1	17 mm	10.9	external hexagon	DIY 100
10116221	10.0 mm	M10X25X1	17 mm	10.9	external hexagon	DIY 100
10116226	10.0 mm	M10X30X1	17 mm	10.9	external hexagon	DIY 100
10116232	10.0 mm	M10X35X1	17 mm	10.9	external hexagon	DIY 100
10116238	12.0 mm	M12X30X1,5	19 mm	10.9	external hexagon	DIY 100
10116244	12.0 mm	M12X35X1,5	19 mm	10.9	external hexagon	DIY 100
10116249	12.0 mm	M12X40X1,5	19 mm	10.9	external hexagon	DIY 50
10116254	12.0 mm	M12X45X1,5	19 mm	10.9	external hexagon	DIY 50
10116260	12.0 mm	M12X50X1,5	19 mm	10.9	external hexagon	DIY 50
10116265	14.0 mm	M14X30X1,5	22 mm	10.9	external hexagon	DIY 50
10116270	14.0 mm	M14X35X1,5	22 mm	10.9	external hexagon	DIY 50
10116275	14.0 mm	M14X40X1,5	22 mm	10.9	external hexagon	DIY 50
10116280	14.0 mm	M14X45X1,5	22 mm	10.9	external hexagon	DIY 50
10116285	14.0 mm	M14X50X1,5	22 mm	10.9	external hexagon	DIY 25
10052402	16.0 mm	M16X30X1,5	24 mm	10.9	external hexagon	DIY 25
10052413	16.0 mm	M16X35X1,5	24 mm	10.9	external hexagon	DIY 25
10116290	16.0 mm	M16X40X1,5	24 mm	10.9	external hexagon	DIY 25
10116297	16.0 mm	M16X50X1,5	24 mm	10.9	external hexagon	DIY 25
10052526	20.0 mm	M20X80X2	30 mm	10.9	external hexagon	STD 25
