Product group 15341022

Sechskantschrauben,Feingewinde mit Gewinde bis Kopf 8.8
Norm: DIN 961, DIN ISO 8676
Former WGR no.: 0261

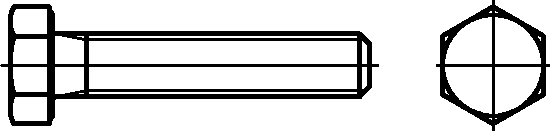

Sketch Sechskantschrauben,Feingewinde mit Gewinde bis Kopf 8.8
Sketch 2 Sechskantschrauben,Feingewinde mit Gewinde bis Kopf 8.8

Surfaces

000 uncoated
001 galvanized
003 Zinc 8my thick film passivated sealed lubricated RW 0.09-0.14 DHN19.001
017 galvanized yellow passivated lubricated
020 zinc 8my thick film passivated sealed DHN19.001
021 galvanized yellow passivated
039 ZnNi//Cn//T2 thick film passivated min. 720h RR
040 galvanized min. 8my thick film passivated
060 galvanized A4F
182 Zinc plate 720h lubricated RW 0.12-0.18 DHN19.001
194 galvanized yellow passivated C65 adhesive coated DIN 267 T27
249 zinc plate fl zn nc 720h adhesive coated DIN267 T27
283 zinc plate 720h lubricated RW 0.09-0.14 DHN19.001
284 zinc plate fl zn nc - 720h - L lubricated
304 with left-hand thread galvanized
1998 coated according to customer requirements

Produktfilter

thread diameter

Alle 10.0 mm 14.0 mm 16.0 mm 24.0 mm

size

Alle M10X25X1,25 M14X40X1,5 M16X20X1,5 M16X45X1,5 M24X55X2

drive size

Alle 17 mm 22 mm 24 mm 36 mm

nominal length

Alle 25.0 mm 40.0 mm 20.0 mm 45.0 mm 55.0 mm

thread pitch

Alle 1.25 mm 1.5 mm 2.0 mm
Material number thread diameter size drive size nominal length standard type Packaging Quantity
10051567 10.0 mm M10X25X1,25 17 mm 25.0 mm DIN STD 100
Add to cart
10051571 14.0 mm M14X40X1,5 22 mm 40.0 mm DIN STD 100
Add to cart
10051575 16.0 mm M16X20X1,5 24 mm 20.0 mm DIN STD 50
Add to cart
10051579 16.0 mm M16X45X1,5 24 mm 45.0 mm DIN STD 50
Add to cart
10051582 24.0 mm M24X55X2 36 mm 55.0 mm DIN STD 25
Add to cart
