Product group 15304067

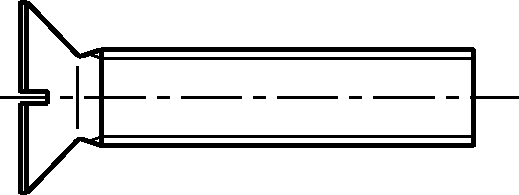

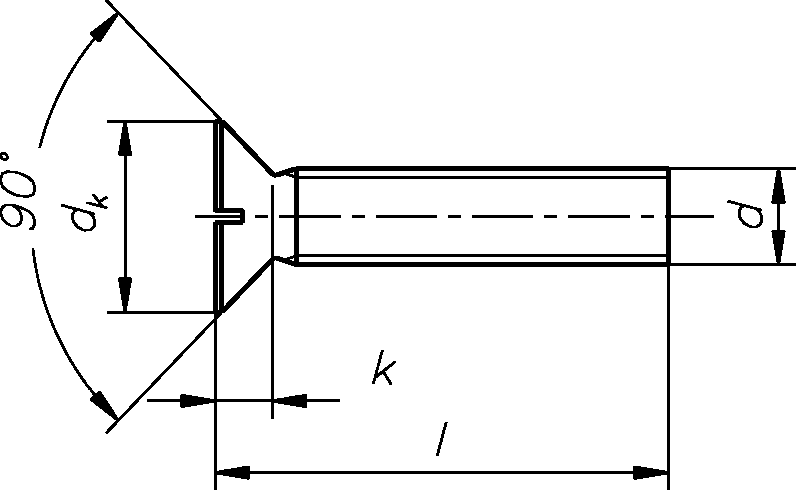

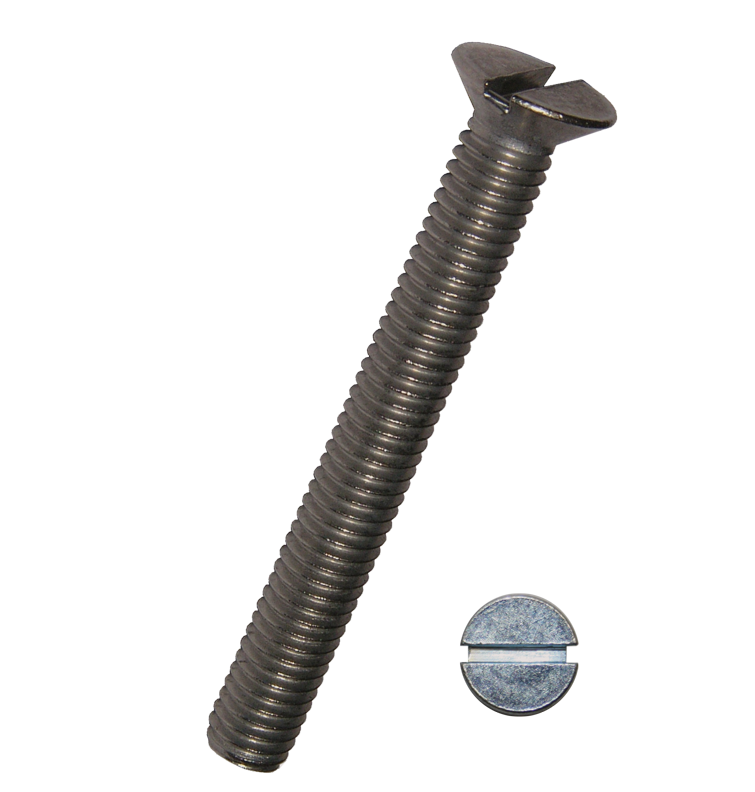

SEKO SHR w.SZ DIN 963

Norm:	DIN 963, DIN ISO 2009
Former WGR no.:	3376

Produktfilter

Material number	thread diameter	size	drive size	strength class-fastener	drive type-fastener	Packaging
10074420	2.0 mm	M2X12	0,5 mm	700 Mpa	slot	STD 2000
10074467	3.0 mm	M3X5	0,8 mm	700 Mpa	slot	STD 2000
10074475	3.0 mm	M3X6	0,8 mm	700 Mpa	slot	STD 100
10074475	3.0 mm	M3X6	0,8 mm	700 Mpa	slot	STD 100
10074471	3.0 mm	M3X6	0,8 mm	700 Mpa	slot	STD 2000
10074482	3.0 mm	M3X8	0,8 mm	700 Mpa	slot	STD 100
10074482	3.0 mm	M3X8	0,8 mm	700 Mpa	slot	STD 100
10074479	3.0 mm	M3X8	0,8 mm	700 Mpa	slot	STD 500
10074490	3.0 mm	M3X10	0,8 mm	700 Mpa	slot	STD 100
10074490	3.0 mm	M3X10	0,8 mm	700 Mpa	slot	STD 100
10074486	3.0 mm	M3X10	0,8 mm	700 Mpa	slot	STD 2000
10115213	3.0 mm	M3X12	0,8 mm	700 Mpa	slot	STD 100
10115213	3.0 mm	M3X12	0,8 mm	700 Mpa	slot	STD 100
10074494	3.0 mm	M3X12	0,8 mm	700 Mpa	slot	STD 2000
10115218	3.0 mm	M3X16	0,8 mm	700 Mpa	slot	STD 100
10115218	3.0 mm	M3X16	0,8 mm	700 Mpa	slot	STD 100
10074504	3.0 mm	M3X16	0,8 mm	700 Mpa	slot	STD 2000
10115223	3.0 mm	M3X20	0,8 mm	700 Mpa	slot	STD 100
10115223	3.0 mm	M3X20	0,8 mm	700 Mpa	slot	STD 100
10074515	3.0 mm	M3X20	0,8 mm	700 Mpa	slot	STD 2000
10074526	3.0 mm	M3X25	0,8 mm	700 Mpa	slot	STD 100
10074526	3.0 mm	M3X25	0,8 mm	700 Mpa	slot	STD 100
10074522	3.0 mm	M3X25	0,8 mm	700 Mpa	slot	STD 2000
10074533	3.0 mm	M3X30	0,8 mm	700 Mpa	slot	STD 100
10074533	3.0 mm	M3X30	0,8 mm	700 Mpa	slot	STD 100
10074530	3.0 mm	M3X30	0,8 mm	700 Mpa	slot	STD 2000
10074536	3.0 mm	M3X35	0,8 mm	700 Mpa	slot	STD 2000
10074540	3.0 mm	M3X40	0,8 mm	700 Mpa	slot	STD 1000
10074544	3.0 mm	M3X50	0,8 mm	700 Mpa	slot	STD 1000
10074548	4.0 mm	M4X6	Bit size 1	700 Mpa	slot	STD 2000
10074555	4.0 mm	M4X8	Bit size 1	700 Mpa	slot	STD 100
10074555	4.0 mm	M4X8	Bit size 1	700 Mpa	slot	STD 100
10074551	4.0 mm	M4X8	Bit size 1	700 Mpa	slot	STD 2000
10074563	4.0 mm	M4X10	Bit size 1	700 Mpa	slot	STD 100
10074563	4.0 mm	M4X10	Bit size 1	700 Mpa	slot	STD 100
10074559	4.0 mm	M4X10	Bit size 1	700 Mpa	slot	STD 2000
10074571	4.0 mm	M4X12	Bit size 1	700 Mpa	slot	STD 100
10074571	4.0 mm	M4X12	Bit size 1	700 Mpa	slot	STD 100
10074567	4.0 mm	M4X12	Bit size 1	700 Mpa	slot	STD 2000
10074579	4.0 mm	M4X16	Bit size 1	700 Mpa	slot	STD 100
10074579	4.0 mm	M4X16	Bit size 1	700 Mpa	slot	STD 100
10074575	4.0 mm	M4X16	Bit size 1	700 Mpa	slot	STD 2000
10115238	4.0 mm	M4X20	Bit size 1	700 Mpa	slot	DIY 25
10115238	4.0 mm	M4X20	Bit size 1	700 Mpa	slot	DIY 25
10115233	4.0 mm	M4X20	Bit size 1	700 Mpa	slot	DIY 100
10115228	4.0 mm	M4X20	Bit size 1	700 Mpa	slot	STD 100
10074583	4.0 mm	M4X20	Bit size 1	700 Mpa	slot	STD 2000
10074598	4.0 mm	M4X25	Bit size 1	700 Mpa	slot	STD 100
10074598	4.0 mm	M4X25	Bit size 1	700 Mpa	slot	STD 100
10074594	4.0 mm	M4X25	Bit size 1	700 Mpa	slot	STD 1000
10115253	4.0 mm	M4X30	Bit size 1	700 Mpa	slot	DIY 25
10115253	4.0 mm	M4X30	Bit size 1	700 Mpa	slot	DIY 25
10115248	4.0 mm	M4X30	Bit size 1	700 Mpa	slot	DIY 100
10115243	4.0 mm	M4X30	Bit size 1	700 Mpa	slot	STD 100
10074603	4.0 mm	M4X30	Bit size 1	700 Mpa	slot	STD 1000
10074613	4.0 mm	M4X35	Bit size 1	700 Mpa	slot	STD 1000
10115268	4.0 mm	M4X40	Bit size 1	700 Mpa	slot	DIY 25
10115268	4.0 mm	M4X40	Bit size 1	700 Mpa	slot	DIY 25
10115263	4.0 mm	M4X40	Bit size 1	700 Mpa	slot	DIY 100
10115258	4.0 mm	M4X40	Bit size 1	700 Mpa	slot	STD 100
10074617	4.0 mm	M4X40	Bit size 1	700 Mpa	slot	STD 1000
10074629	4.0 mm	M4X45	Bit size 1	700 Mpa	slot	STD 1000
10074636	4.0 mm	M4X50	Bit size 1	700 Mpa	slot	STD 100
10074636	4.0 mm	M4X50	Bit size 1	700 Mpa	slot	STD 100
10074632	4.0 mm	M4X50	Bit size 1	700 Mpa	slot	STD 1000
10074640	4.0 mm	M4X60	Bit size 1	700 Mpa	slot	STD 200
10074644	5.0 mm	M5X6	1,2 mm	700 Mpa	slot	STD 2000
10074648	5.0 mm	M5X8	1,2 mm	700 Mpa	slot	STD 500
10074656	5.0 mm	M5X10	1,2 mm	700 Mpa	slot	STD 100
10074656	5.0 mm	M5X10	1,2 mm	700 Mpa	slot	STD 100
10074652	5.0 mm	M5X10	1,2 mm	700 Mpa	slot	STD 2000
10074663	5.0 mm	M5X12	1,2 mm	700 Mpa	slot	STD 100
10074663	5.0 mm	M5X12	1,2 mm	700 Mpa	slot	STD 100
10074660	5.0 mm	M5X12	1,2 mm	700 Mpa	slot	STD 500
10074671	5.0 mm	M5X16	1,2 mm	700 Mpa	slot	STD 100
10074671	5.0 mm	M5X16	1,2 mm	700 Mpa	slot	STD 100
10074667	5.0 mm	M5X16	1,2 mm	700 Mpa	slot	STD 1000
10074674	5.0 mm	M5X18	1,2 mm	700 Mpa	slot	STD 1000
10115283	5.0 mm	M5X20	1,2 mm	700 Mpa	slot	DIY 25
10115283	5.0 mm	M5X20	1,2 mm	700 Mpa	slot	DIY 25
10115278	5.0 mm	M5X20	1,2 mm	700 Mpa	slot	DIY 100
10115273	5.0 mm	M5X20	1,2 mm	700 Mpa	slot	STD 100
10074678	5.0 mm	M5X20	1,2 mm	700 Mpa	slot	STD 1000
10074695	5.0 mm	M5X25	1,2 mm	700 Mpa	slot	STD 100
10074695	5.0 mm	M5X25	1,2 mm	700 Mpa	slot	STD 100
10074691	5.0 mm	M5X25	1,2 mm	700 Mpa	slot	STD 1000
10115299	5.0 mm	M5X30	1,2 mm	700 Mpa	slot	DIY 25
10115299	5.0 mm	M5X30	1,2 mm	700 Mpa	slot	DIY 25
10115294	5.0 mm	M5X30	1,2 mm	700 Mpa	slot	DIY 100
10115289	5.0 mm	M5X30	1,2 mm	700 Mpa	slot	STD 100
10074697	5.0 mm	M5X30	1,2 mm	700 Mpa	slot	STD 500
10074708	5.0 mm	M5X35	1,2 mm	700 Mpa	slot	STD 500
10115314	5.0 mm	M5X40	1,2 mm	700 Mpa	slot	DIY 25
10115314	5.0 mm	M5X40	1,2 mm	700 Mpa	slot	DIY 25
10115309	5.0 mm	M5X40	1,2 mm	700 Mpa	slot	DIY 100
10115304	5.0 mm	M5X40	1,2 mm	700 Mpa	slot	STD 100
10074712	5.0 mm	M5X40	1,2 mm	700 Mpa	slot	STD 500
10074723	5.0 mm	M5X45	1,2 mm	700 Mpa	slot	STD 500
10115324	5.0 mm	M5X50	1,2 mm	700 Mpa	slot	DIY 25
10115324	5.0 mm	M5X50	1,2 mm	700 Mpa	slot	DIY 25
10115319	5.0 mm	M5X50	1,2 mm	700 Mpa	slot	DIY 100
10074732	5.0 mm	M5X50	1,2 mm	700 Mpa	slot	STD 100
10074728	5.0 mm	M5X50	1,2 mm	700 Mpa	slot	STD 500
10115334	5.0 mm	M5X60	1,2 mm	700 Mpa	slot	DIY 25
10115334	5.0 mm	M5X60	1,2 mm	700 Mpa	slot	DIY 25
10074744	5.0 mm	M5X60	1,2 mm	700 Mpa	slot	STD 50
10115329	5.0 mm	M5X60	1,2 mm	700 Mpa	slot	DIY 50
10074740	5.0 mm	M5X60	1,2 mm	700 Mpa	slot	STD 200
10074756	5.0 mm	M5X70	1,2 mm	700 Mpa	slot	STD 200
10074760	5.0 mm	M5X80	1,2 mm	700 Mpa	slot	STD 200
10074763	5.0 mm	M5X100	1,2 mm	700 Mpa	slot	STD 100
10074772	6.0 mm	M6X10	1,6 mm	700 Mpa	slot	STD 100
10074772	6.0 mm	M6X10	1,6 mm	700 Mpa	slot	STD 100
10074769	6.0 mm	M6X10	1,6 mm	700 Mpa	slot	STD 1000
10074780	6.0 mm	M6X12	1,6 mm	700 Mpa	slot	STD 100
10074780	6.0 mm	M6X12	1,6 mm	700 Mpa	slot	STD 100
10074776	6.0 mm	M6X12	1,6 mm	700 Mpa	slot	STD 1000
10074788	6.0 mm	M6X16	1,6 mm	700 Mpa	slot	STD 100
10074788	6.0 mm	M6X16	1,6 mm	700 Mpa	slot	STD 100
10074784	6.0 mm	M6X16	1,6 mm	700 Mpa	slot	STD 1000
10115344	6.0 mm	M6X20	1,6 mm	700 Mpa	slot	DIY 25
10115344	6.0 mm	M6X20	1,6 mm	700 Mpa	slot	DIY 25
10115339	6.0 mm	M6X20	1,6 mm	700 Mpa	slot	DIY 100
10074796	6.0 mm	M6X20	1,6 mm	700 Mpa	slot	STD 100
10074792	6.0 mm	M6X20	1,6 mm	700 Mpa	slot	STD 1000
10074809	6.0 mm	M6X25	1,6 mm	700 Mpa	slot	STD 100
10074809	6.0 mm	M6X25	1,6 mm	700 Mpa	slot	STD 100
10074805	6.0 mm	M6X25	1,6 mm	700 Mpa	slot	STD 500
10115359	6.0 mm	M6X30	1,6 mm	700 Mpa	slot	DIY 25
10115359	6.0 mm	M6X30	1,6 mm	700 Mpa	slot	DIY 25
10115354	6.0 mm	M6X30	1,6 mm	700 Mpa	slot	DIY 100
10115349	6.0 mm	M6X30	1,6 mm	700 Mpa	slot	STD 100
10074812	6.0 mm	M6X30	1,6 mm	700 Mpa	slot	STD 500
10074827	6.0 mm	M6X35	1,6 mm	700 Mpa	slot	STD 100
10074827	6.0 mm	M6X35	1,6 mm	700 Mpa	slot	STD 100
10074823	6.0 mm	M6X35	1,6 mm	700 Mpa	slot	STD 500
10115374	6.0 mm	M6X40	1,6 mm	700 Mpa	slot	DIY 25
10115374	6.0 mm	M6X40	1,6 mm	700 Mpa	slot	DIY 25
10115369	6.0 mm	M6X40	1,6 mm	700 Mpa	slot	DIY 100
10115364	6.0 mm	M6X40	1,6 mm	700 Mpa	slot	STD 100
10074830	6.0 mm	M6X40	1,6 mm	700 Mpa	slot	STD 500
10074846	6.0 mm	M6X45	1,6 mm	700 Mpa	slot	STD 50
10074846	6.0 mm	M6X45	1,6 mm	700 Mpa	slot	STD 50
10074842	6.0 mm	M6X45	1,6 mm	700 Mpa	slot	STD 200
10115389	6.0 mm	M6X50	1,6 mm	700 Mpa	slot	DIY 25
10115389	6.0 mm	M6X50	1,6 mm	700 Mpa	slot	DIY 25
10115384	6.0 mm	M6X50	1,6 mm	700 Mpa	slot	DIY 50
10115379	6.0 mm	M6X50	1,6 mm	700 Mpa	slot	STD 50
10074850	6.0 mm	M6X50	1,6 mm	700 Mpa	slot	STD 200
10115399	6.0 mm	M6X60	1,6 mm	700 Mpa	slot	DIY 25
10115399	6.0 mm	M6X60	1,6 mm	700 Mpa	slot	DIY 25
10115394	6.0 mm	M6X60	1,6 mm	700 Mpa	slot	DIY 50
10074861	6.0 mm	M6X60	1,6 mm	700 Mpa	slot	STD 200
10074874	6.0 mm	M6X70	1,6 mm	700 Mpa	slot	STD 25
10074874	6.0 mm	M6X70	1,6 mm	700 Mpa	slot	STD 25
10115404	6.0 mm	M6X70	1,6 mm	700 Mpa	slot	DIY 25
10074870	6.0 mm	M6X70	1,6 mm	700 Mpa	slot	STD 200
10074885	6.0 mm	M6X80	1,6 mm	700 Mpa	slot	STD 25
10074885	6.0 mm	M6X80	1,6 mm	700 Mpa	slot	STD 25
10074880	6.0 mm	M6X80	1,6 mm	700 Mpa	slot	STD 200
10074889	6.0 mm	M6X90	1,6 mm	700 Mpa	slot	STD 100
10074893	6.0 mm	M6X100	1,6 mm	700 Mpa	slot	STD 100
10074898	8.0 mm	M8X12	Bit size 2	700 Mpa	slot	STD 500
10074902	8.0 mm	M8X16	Bit size 2	700 Mpa	slot	STD 200
10074906	8.0 mm	M8X20	Bit size 2	700 Mpa	slot	STD 500
10074911	8.0 mm	M8X25	Bit size 2	700 Mpa	slot	STD 500
10074918	8.0 mm	M8X30	Bit size 2	700 Mpa	slot	STD 200
10074923	8.0 mm	M8X35	Bit size 2	700 Mpa	slot	STD 200
10074926	8.0 mm	M8X40	Bit size 2	700 Mpa	slot	STD 200
10074930	8.0 mm	M8X45	Bit size 2	700 Mpa	slot	STD 100
10074934	8.0 mm	M8X50	Bit size 2	700 Mpa	slot	STD 100
10074938	8.0 mm	M8X60	Bit size 2	700 Mpa	slot	STD 100
10074942	8.0 mm	M8X70	Bit size 2	700 Mpa	slot	STD 100
10074946	8.0 mm	M8X80	Bit size 2	700 Mpa	slot	STD 100
10074950	8.0 mm	M8X90	Bit size 2	700 Mpa	slot	STD 100
10074954	8.0 mm	M8X100	Bit size 2	700 Mpa	slot	STD 100
10074958	10.0 mm	M10X16	2,5 mm	700 Mpa	slot	STD 100
10074961	10.0 mm	M10X20	2,5 mm	700 Mpa	slot	STD 100
10074964	10.0 mm	M10X25	2,5 mm	700 Mpa	slot	STD 100
10074968	10.0 mm	M10X30	2,5 mm	700 Mpa	slot	STD 100
10074972	10.0 mm	M10X35	2,5 mm	700 Mpa	slot	STD 100
10074976	10.0 mm	M10X40	2,5 mm	700 Mpa	slot	STD 100
10074980	10.0 mm	M10X45	2,5 mm	700 Mpa	slot	STD 100
10074984	10.0 mm	M10X50	2,5 mm	700 Mpa	slot	STD 100
10074988	10.0 mm	M10X55	2,5 mm	700 Mpa	slot	STD 100
10074992	10.0 mm	M10X60	2,5 mm	700 Mpa	slot	STD 100
10074996	10.0 mm	M10X70	2,5 mm	700 Mpa	slot	STD 100
10075000	10.0 mm	M10X80	2,5 mm	700 Mpa	slot	STD 100
10075004	10.0 mm	M10X90	2,5 mm	700 Mpa	slot	STD 100
10075008	10.0 mm	M10X100	2,5 mm	700 Mpa	slot	STD 50
