Product group 03015143

Center wall bolt head-D. 5

Former WGR no.:

7128

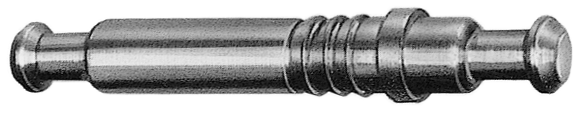

Article picture Center wall bolt head-D. 5

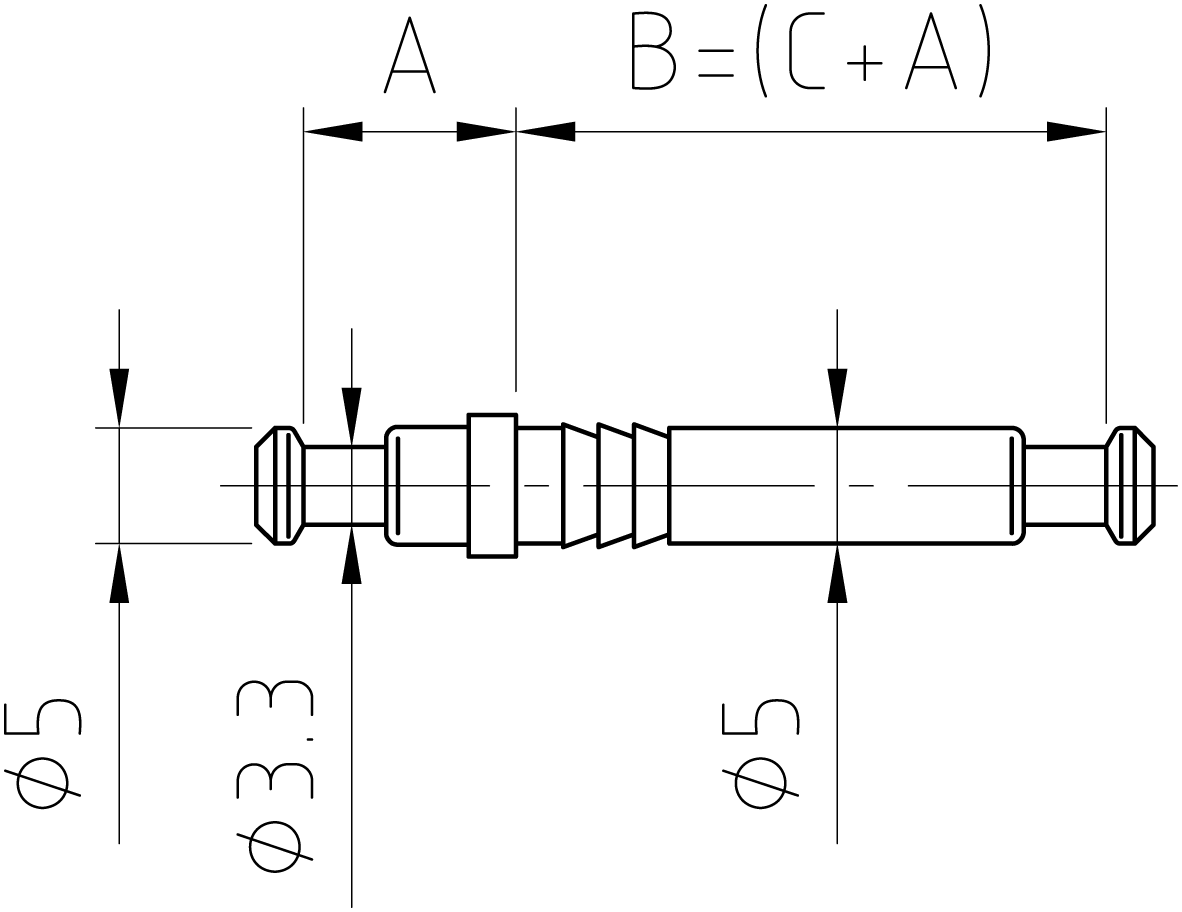

Sketch Center wall bolt head-D. 5

Produktfilter

nominal diameter

Alle 7.0 mm 9.0 mm

nominal length

Alle 23.0 mm 26.0 mm 25.0 mm 27.8 mm

Material number	nominal diameter	nominal length	material	head shape	Packaging	Quantity
10054157	7.0 mm	23.0 mm	steel	D5 head diameter	STD 1000
10054161	7.0 mm	26.0 mm	steel	D5 head diameter	STD 1000
10054165	9.0 mm	25.0 mm	steel	D5 head diameter	STD 1000
10054174	9.0 mm	27.8 mm	steel	D5 head diameter	STD 1000
