SHB CONTACT Form A

Article picture SHB CONTACT Form A

Article picture SHB CONTACT Form A

SHB-CONTACT Form S narrow

Article picture SHB-CONTACT Form S narrow

Article picture SHB-CONTACT Form S narrow

SHB CONTACT Form B

Sketch SHB CONTACT Form B

Sketch SHB CONTACT Form B

Product group 15251048

SHB-CONTACT Form S narrow

Surface	182 Zinc plate 720h lubricated RW 0.12-0.18 DHN19.001
Former WGR no.:	1519

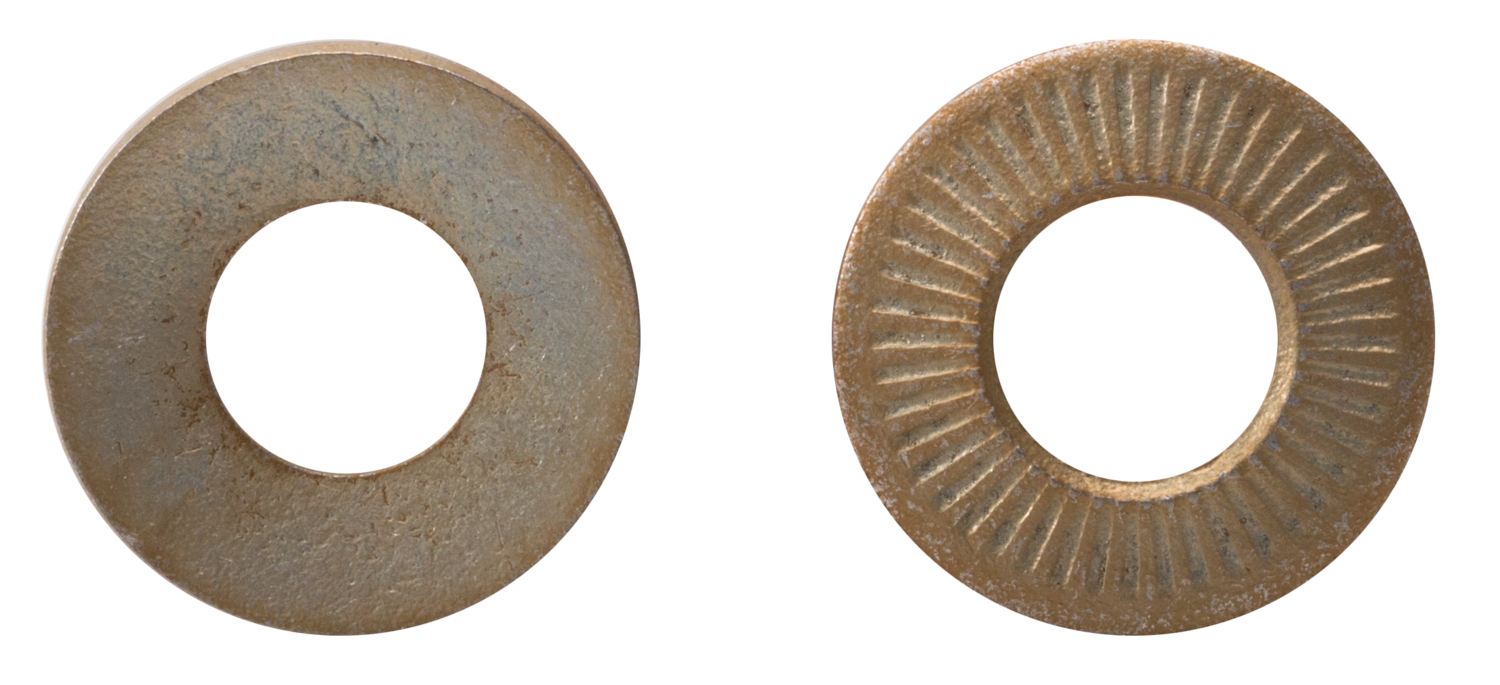

Article picture SHB-CONTACT Form S narrow

Sketch SHB-CONTACT Form S narrow

Produktfilter

inner diameter

Alle 6.1 mm 8.2 mm 10.1 mm 12.4 mm

outer diameter

Alle 12.0 mm 16.0 mm 20.0 mm 24.0 mm

nominal diameter

Alle 6.0 mm 8.0 mm 10.0 mm 12.0 mm

size

Alle 6,1X12 8,2X16 10,1X20 12,4X24

Material number	inner diameter	outer diameter	nominal diameter	size	material	Packaging	Quantity
10078755	6.1 mm	12.0 mm	6.0 mm	6,1X12	steel	STD 1000
10078759	8.2 mm	16.0 mm	8.0 mm	8,2X16	steel	STD 1000
10078763	10.1 mm	20.0 mm	10.0 mm	10,1X20	steel	STD 3000
10078766	12.4 mm	24.0 mm	12.0 mm	12,4X24	steel	STD 500
