Product shop Product shop Locking screws/accessories without DIN standards Schnorr lock washers

lock SHB Form S

Article picture lock SHB Form S

Article picture lock SHB Form S

lock SHB Form VS

Sketch 2 lock SHB Form VS

Sketch 2 lock SHB Form VS

lock SHB Form S

Sketch 2 lock SHB Form S

Sketch 2 lock SHB Form S

Product group 15236035

lock SHB Form S

Former WGR no.:

3469

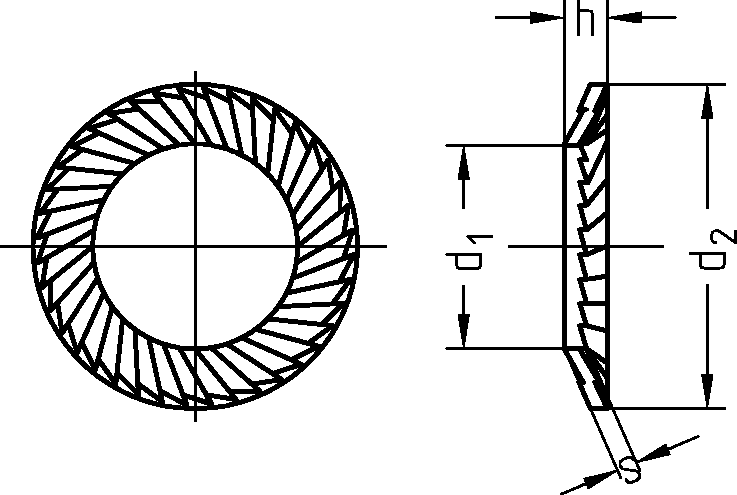

Sketch lock SHB Form S

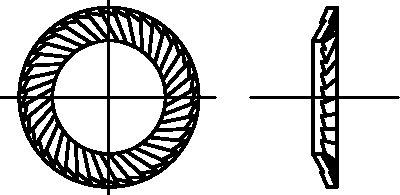

Sketch 2 lock SHB Form S

Produktfilter

inner diameter

Alle 3.2 mm 4.3 mm 5.3 mm 6.4 mm 8.4 mm 10.5 mm 13.0 mm 21.0 mm

outer diameter

Alle 55.0 mm 7.0 mm 9.0 mm 10.0 mm 13.0 mm 16.0 mm 18.0 mm 30.0 mm

nominal diameter

Alle 3.0 mm 4.0 mm 5.0 mm 6.0 mm 8.0 mm 10.0 mm 12.0 mm 20.0 mm

size

Alle 3,2X55X0,45 4,3X7X5 5,3X9X0,6 6,4X10X7 8,4X13X1 10,5X16X1 13X18 21X30

thickness

Alle 0.45 mm 5.0 mm 0.6 mm 7.0 mm 1.0 mm

Material number	inner diameter	outer diameter	nominal diameter	size	material	Packaging	Quantity
10085467	3.2 mm	55.0 mm	3.0 mm	3,2X55X0,45	stainless steel A2	STD 2000
10085472	4.3 mm	7.0 mm	4.0 mm	4,3X7X5	stainless steel A2	STD 1000
10085476	5.3 mm	9.0 mm	5.0 mm	5,3X9X0,6	stainless steel A2	STD 1000
10085480	6.4 mm	10.0 mm	6.0 mm	6,4X10X7	stainless steel A2	STD 1000
10085484	8.4 mm	13.0 mm	8.0 mm	8,4X13X1	stainless steel A2	STD 1000
10085489	10.5 mm	16.0 mm	10.0 mm	10,5X16X1	stainless steel A2	STD 1000
10085496	13.0 mm	18.0 mm	12.0 mm	13X18	stainless steel A2	STD 500
10085508	21.0 mm	30.0 mm	20.0 mm	21X30	stainless steel A2	STD 250
