Product shop Product shop DIN/EN/ISO standard parts 931-988 DIN 963 countersunk screws with slot

SEKO SHR w.SZ DIN 963

Article picture SEKO SHR w.SZ DIN 963

Article picture SEKO SHR w.SZ DIN 963

SEKO SHR w.SZ DIN 963

Article picture SEKO SHR w.SZ DIN 963

Article picture SEKO SHR w.SZ DIN 963

SEKO SHR w.SZ DIN 963

Article picture SEKO SHR w.SZ DIN 963

Article picture SEKO SHR w.SZ DIN 963

SEKO SHR w.SZ DIN 963

Sketch 2 SEKO SHR w.SZ DIN 963

Sketch 2 SEKO SHR w.SZ DIN 963

Product group 15337031

SEKO SHR w.SZ DIN 963

Norm:	DIN 963, DIN ISO 2009
Former WGR no.:	0420

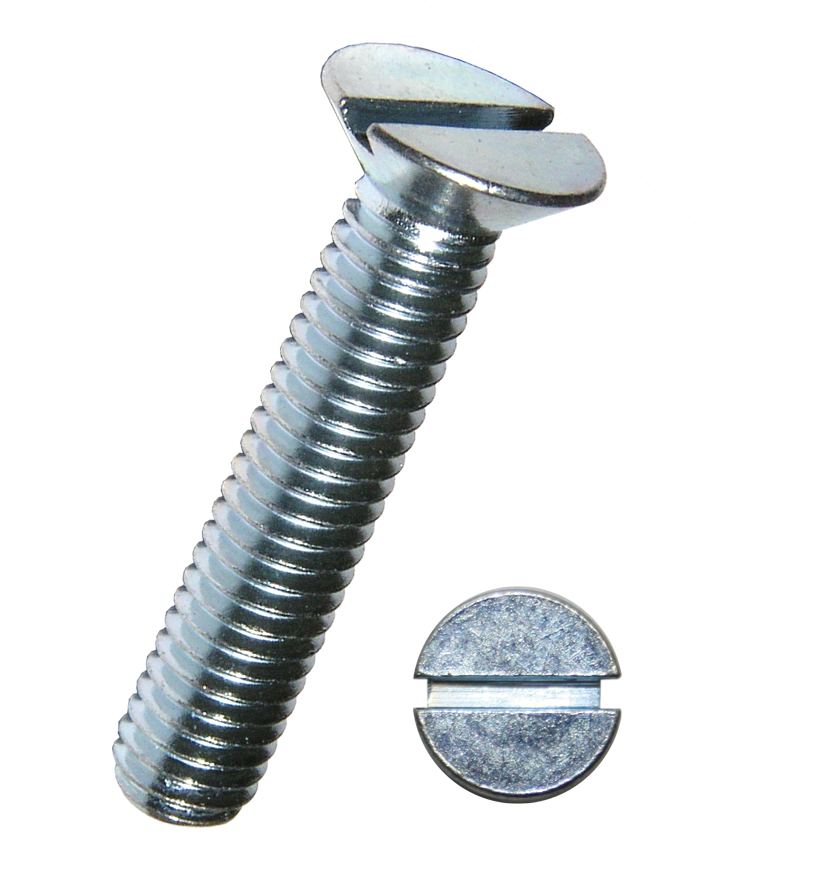

Article picture SEKO SHR w.SZ DIN 963

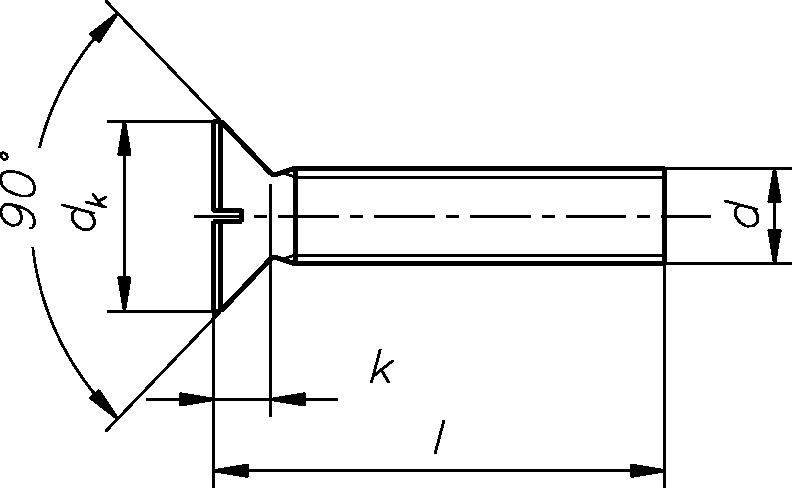

Sketch SEKO SHR w.SZ DIN 963

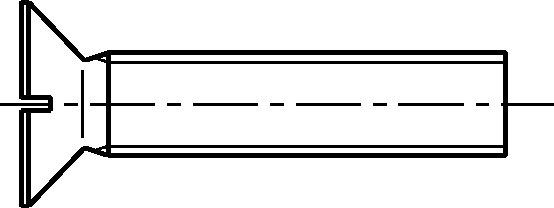

Sketch 2 SEKO SHR w.SZ DIN 963

Surfaces

000 uncoated

001 galvanized

283 zinc plate 720h lubricated RW 0.09-0.14 DHN19.001

332 galvanized with head hole

Produktfilter

thread diameter

Alle 6.0 mm 8.0 mm

size

Alle M6X20 M6X25 M6X30 M6X35 M6X40 M6X45 M6X60 M8X30 M8X35 M8X50 M8X55 M8X60

drive size

Alle 1,6 mm Bit size 2

nominal length

Alle 20.0 mm 25.0 mm 30.0 mm 35.0 mm 40.0 mm 45.0 mm 60.0 mm 50.0 mm 55.0 mm

Material number	thread diameter	size	drive size	strength class-fastener	drive type-fastener	Packaging	Quantity
10102286	6.0 mm	M6X20	1,6 mm	4.8	slot	STD 1000
10102294	6.0 mm	M6X25	1,6 mm	4.8	slot	STD 500
10102301	6.0 mm	M6X30	1,6 mm	4.8	slot	STD 500
10102309	6.0 mm	M6X35	1,6 mm	4.8	slot	STD 500
10102316	6.0 mm	M6X40	1,6 mm	4.8	slot	STD 500
10102324	6.0 mm	M6X45	1,6 mm	4.8	slot	STD 200
10102332	6.0 mm	M6X60	1,6 mm	4.8	slot	STD 200
10102339	8.0 mm	M8X30	Bit size 2	4.8	slot	STD 200
10102346	8.0 mm	M8X35	Bit size 2	4.8	slot	STD 200
10102355	8.0 mm	M8X50	Bit size 2	4.8	slot	STD 100
10090028	8.0 mm	M8X55	Bit size 2	4.8	slot	STD 200
10090037	8.0 mm	M8X60	Bit size 2	4.8	slot	STD 200
