Product group 15304050

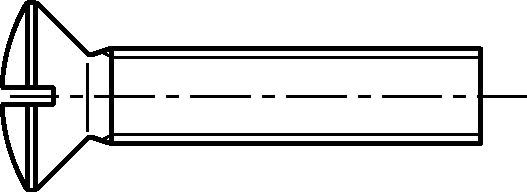

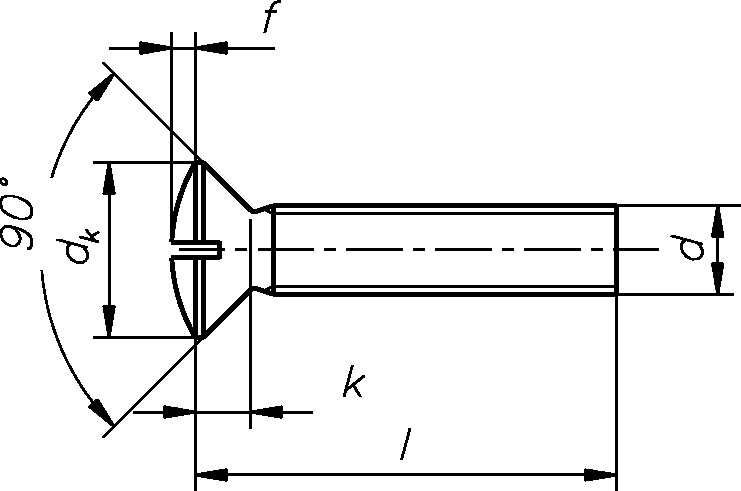

LISEKO SHR w.SZ DIN 964

Norm:	DIN 964, DIN ISO 2010
Former WGR no.:	3377

Produktfilter

Material number	thread diameter	size	drive size	strength class-fastener	drive type-fastener	Packaging
10075012	3.0 mm	M3X6	0,8 mm	500 Mpa	slot	STD 2000
10075015	3.0 mm	M3X8	0,8 mm	500 Mpa	slot	STD 2000
10075018	3.0 mm	M3X10	0,8 mm	500 Mpa	slot	STD 2000
10075022	3.0 mm	M3X12	0,8 mm	500 Mpa	slot	STD 2000
10075030	3.0 mm	M3X16	0,8 mm	500 Mpa	slot	STD 100
10075030	3.0 mm	M3X16	0,8 mm	500 Mpa	slot	STD 100
10075026	3.0 mm	M3X16	0,8 mm	500 Mpa	slot	STD 2000
10075034	3.0 mm	M3X20	0,8 mm	500 Mpa	slot	STD 2000
10075038	3.0 mm	M3X25	0,8 mm	500 Mpa	slot	STD 2000
10075042	3.0 mm	M3X30	0,8 mm	500 Mpa	slot	STD 2000
10075047	4.0 mm	M4X6	Bit size 1	500 Mpa	slot	STD 2000
10075049	4.0 mm	M4X8	Bit size 1	500 Mpa	slot	STD 2000
10075053	4.0 mm	M4X10	Bit size 1	500 Mpa	slot	STD 2000
10075057	4.0 mm	M4X12	Bit size 1	500 Mpa	slot	STD 2000
10075069	4.0 mm	M4X16	Bit size 1	500 Mpa	slot	STD 100
10075069	4.0 mm	M4X16	Bit size 1	500 Mpa	slot	STD 100
10075065	4.0 mm	M4X16	Bit size 1	500 Mpa	slot	STD 2000
10075078	4.0 mm	M4X20	Bit size 1	500 Mpa	slot	STD 100
10075078	4.0 mm	M4X20	Bit size 1	500 Mpa	slot	STD 100
10075073	4.0 mm	M4X20	Bit size 1	500 Mpa	slot	STD 2000
10075086	4.0 mm	M4X25	Bit size 1	500 Mpa	slot	STD 100
10075086	4.0 mm	M4X25	Bit size 1	500 Mpa	slot	STD 100
10075082	4.0 mm	M4X25	Bit size 1	500 Mpa	slot	STD 1000
10075093	4.0 mm	M4X30	Bit size 1	500 Mpa	slot	STD 100
10075093	4.0 mm	M4X30	Bit size 1	500 Mpa	slot	STD 100
10075089	4.0 mm	M4X30	Bit size 1	500 Mpa	slot	STD 1000
10075097	4.0 mm	M4X35	Bit size 1	500 Mpa	slot	STD 1000
10075104	4.0 mm	M4X40	Bit size 1	500 Mpa	slot	STD 1000
10075108	4.0 mm	M4X45	Bit size 1	500 Mpa	slot	STD 1000
10075113	4.0 mm	M4X50	Bit size 1	500 Mpa	slot	STD 1000
10075117	4.0 mm	M4X60	Bit size 1	500 Mpa	slot	STD 200
10075121	4.0 mm	M4X70	Bit size 1	500 Mpa	slot	STD 200
10075128	5.0 mm	M5X6	1,2 mm	500 Mpa	slot	STD 1000
10075133	5.0 mm	M5X8	1,2 mm	500 Mpa	slot	STD 1000
10075136	5.0 mm	M5X10	1,2 mm	500 Mpa	slot	STD 1000
10075145	5.0 mm	M5X12	1,2 mm	500 Mpa	slot	STD 1000
10075152	5.0 mm	M5X16	1,2 mm	500 Mpa	slot	STD 100
10075152	5.0 mm	M5X16	1,2 mm	500 Mpa	slot	STD 100
10075150	5.0 mm	M5X16	1,2 mm	500 Mpa	slot	STD 1000
10075160	5.0 mm	M5X20	1,2 mm	500 Mpa	slot	STD 100
10075160	5.0 mm	M5X20	1,2 mm	500 Mpa	slot	STD 100
10075157	5.0 mm	M5X20	1,2 mm	500 Mpa	slot	STD 1000
10075164	5.0 mm	M5X25	1,2 mm	500 Mpa	slot	STD 1000
10075172	5.0 mm	M5X30	1,2 mm	500 Mpa	slot	STD 100
10075172	5.0 mm	M5X30	1,2 mm	500 Mpa	slot	STD 100
10075168	5.0 mm	M5X30	1,2 mm	500 Mpa	slot	STD 1000
10075176	5.0 mm	M5X35	1,2 mm	500 Mpa	slot	STD 500
10075184	5.0 mm	M5X40	1,2 mm	500 Mpa	slot	STD 100
10075184	5.0 mm	M5X40	1,2 mm	500 Mpa	slot	STD 100
10075180	5.0 mm	M5X40	1,2 mm	500 Mpa	slot	STD 500
10075188	5.0 mm	M5X45	1,2 mm	500 Mpa	slot	STD 200
10075193	5.0 mm	M5X50	1,2 mm	500 Mpa	slot	STD 500
10075197	5.0 mm	M5X60	1,2 mm	500 Mpa	slot	STD 200
10075199	5.0 mm	M5X70	1,2 mm	500 Mpa	slot	STD 200
10075204	5.0 mm	M5X80	1,2 mm	500 Mpa	slot	STD 200
10075207	5.0 mm	M5X90	1,2 mm	500 Mpa	slot	STD 200
10075211	5.0 mm	M5X100	1,2 mm	500 Mpa	slot	STD 200
10075216	6.0 mm	M6X8	1,6 mm	500 Mpa	slot	STD 1000
10075220	6.0 mm	M6X10	1,6 mm	500 Mpa	slot	STD 1000
10075224	6.0 mm	M6X12	1,6 mm	500 Mpa	slot	STD 1000
10075228	6.0 mm	M6X16	1,6 mm	500 Mpa	slot	STD 1000
10075236	6.0 mm	M6X20	1,6 mm	500 Mpa	slot	STD 100
10075236	6.0 mm	M6X20	1,6 mm	500 Mpa	slot	STD 100
10075232	6.0 mm	M6X20	1,6 mm	500 Mpa	slot	STD 1000
10075245	6.0 mm	M6X25	1,6 mm	500 Mpa	slot	STD 500
10075252	6.0 mm	M6X30	1,6 mm	500 Mpa	slot	STD 100
10075252	6.0 mm	M6X30	1,6 mm	500 Mpa	slot	STD 100
10075248	6.0 mm	M6X30	1,6 mm	500 Mpa	slot	STD 500
10075257	6.0 mm	M6X35	1,6 mm	500 Mpa	slot	STD 100
10075257	6.0 mm	M6X35	1,6 mm	500 Mpa	slot	STD 100
10075254	6.0 mm	M6X35	1,6 mm	500 Mpa	slot	STD 500
10075265	6.0 mm	M6X40	1,6 mm	500 Mpa	slot	STD 100
10075265	6.0 mm	M6X40	1,6 mm	500 Mpa	slot	STD 100
10075261	6.0 mm	M6X40	1,6 mm	500 Mpa	slot	STD 500
10075269	6.0 mm	M6X45	1,6 mm	500 Mpa	slot	STD 200
10075277	6.0 mm	M6X50	1,6 mm	500 Mpa	slot	STD 50
10075277	6.0 mm	M6X50	1,6 mm	500 Mpa	slot	STD 50
10075273	6.0 mm	M6X50	1,6 mm	500 Mpa	slot	STD 200
10075286	6.0 mm	M6X60	1,6 mm	500 Mpa	slot	STD 200
10075290	6.0 mm	M6X70	1,6 mm	500 Mpa	slot	STD 200
10075293	6.0 mm	M6X80	1,6 mm	500 Mpa	slot	STD 200
10075297	6.0 mm	M6X90	1,6 mm	500 Mpa	slot	STD 100
10075301	6.0 mm	M6X100	1,6 mm	500 Mpa	slot	STD 100
10075306	8.0 mm	M8X16	Bit size 2	500 Mpa	slot	STD 500
10075310	8.0 mm	M8X20	Bit size 2	500 Mpa	slot	STD 600
10075313	8.0 mm	M8X25	Bit size 2	500 Mpa	slot	STD 500
10075316	8.0 mm	M8X30	Bit size 2	500 Mpa	slot	STD 200
10075321	8.0 mm	M8X35	Bit size 2	500 Mpa	slot	STD 200
10075324	8.0 mm	M8X40	Bit size 2	500 Mpa	slot	STD 100
10075329	8.0 mm	M8X45	Bit size 2	500 Mpa	slot	STD 100
10075333	8.0 mm	M8X50	Bit size 2	500 Mpa	slot	STD 100
10075338	8.0 mm	M8X80	Bit size 2	500 Mpa	slot	STD 100
10075342	8.0 mm	M8X90	Bit size 2	500 Mpa	slot	STD 100
10075346	8.0 mm	M8X100	Bit size 2	500 Mpa	slot	STD 100
10075349	10.0 mm	M10X20	2,5 mm	500 Mpa	slot	STD 100
10075353	10.0 mm	M10X25	2,5 mm	500 Mpa	slot	STD 100
10075357	10.0 mm	M10X30	2,5 mm	500 Mpa	slot	STD 100
10075361	10.0 mm	M10X35	2,5 mm	500 Mpa	slot	STD 100
10075366	10.0 mm	M10X40	2,5 mm	500 Mpa	slot	STD 100
10075370	10.0 mm	M10X50	2,5 mm	500 Mpa	slot	STD 100
10075374	10.0 mm	M10X60	2,5 mm	500 Mpa	slot	STD 100
