Product group 15157041

6KT MU lock low FG

Norm:	DIN 985, DIN ISO 10511
Surface	001 galvanized
Former WGR no.:	0685

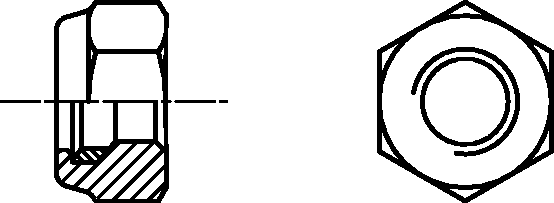

Sketch 6KT MU lock low FG

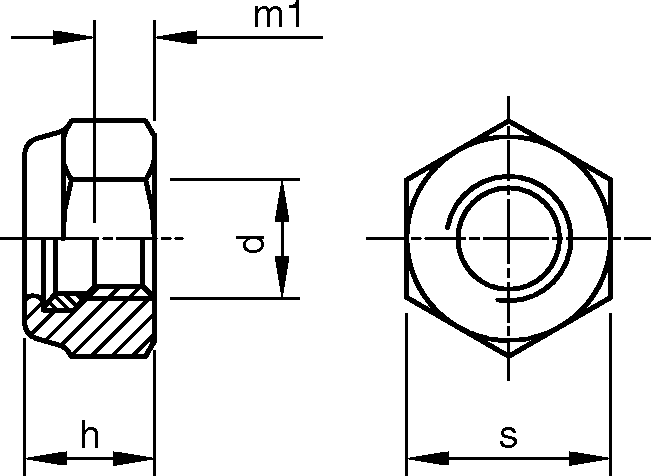

Sketch 2 6KT MU lock low FG

Produktfilter

thread diameter

Alle 8.0 mm 10.0 mm 12.0 mm 14.0 mm 16.0 mm 18.0 mm 20.0 mm 22.0 mm 24.0 mm

size

Alle M8X1 M10X1 M12X1,5 M14X1,5 M16X1,5 M18X1,5 M20X1,5 M22X1,5 M24X1,5

drive size

Alle 13 mm 17 mm 19 mm 22 mm 24 mm 27 mm 30 mm 32 mm 36 mm

total nut height

Alle 8.0 mm 10.0 mm 12.0 mm 14.0 mm 16.0 mm 18.5 mm 20.0 mm 22.0 mm 24.0 mm

thread pitch

Alle 1.0 mm 1.5 mm

Material number	thread diameter	size	drive size	total nut height	standard type	Packaging	Quantity
10007923	8.0 mm	M8X1	13 mm	8.0 mm	DIN	STD 1000
10007926	10.0 mm	M10X1	17 mm	10.0 mm	DIN	STD 500
10007937	12.0 mm	M12X1,5	19 mm	12.0 mm	DIN	STD 200
10007940	14.0 mm	M14X1,5	22 mm	14.0 mm	DIN	STD 200
10007943	16.0 mm	M16X1,5	24 mm	16.0 mm	DIN	STD 200
10007949	18.0 mm	M18X1,5	27 mm	18.5 mm	DIN	STD 100
10007952	20.0 mm	M20X1,5	30 mm	20.0 mm	DIN	STD 100
10007960	22.0 mm	M22X1,5	32 mm	22.0 mm	DIN	STD 50
10007963	24.0 mm	M24X1,5	36 mm	24.0 mm	DIN	STD 50
