Product group 15157040

6KT MU lock low

Norm:	DIN 985, DIN ISO 10511
Surface	001 galvanized
Former WGR no.:	0684

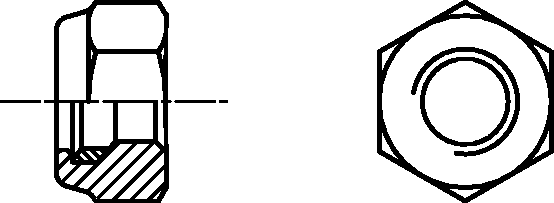

Sketch 6KT MU lock low

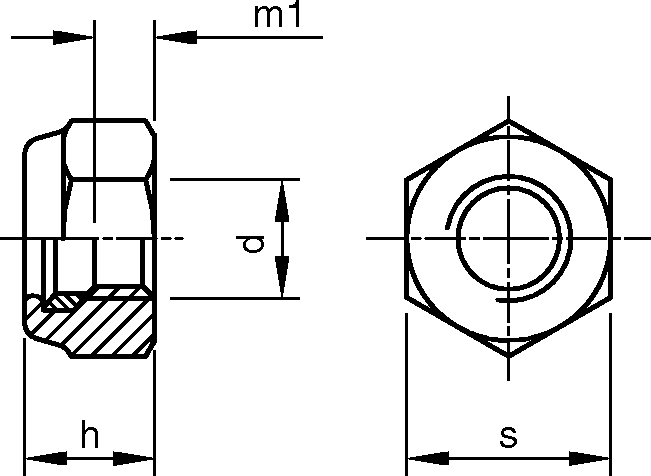

Sketch 2 6KT MU lock low

Produktfilter

thread diameter

Alle 6.0 mm 8.0 mm 10.0 mm 12.0 mm 14.0 mm 16.0 mm 18.0 mm 20.0 mm 24.0 mm 30.0 mm

size

Alle M6 M8 M10 M12 M14 M16 M18 M20 M24 M30

drive size

Alle 10 mm 13 mm 17 mm 19 mm 22 mm 24 mm 27 mm 30 mm 36 mm 46 mm

total nut height

Alle 6.0 mm 8.0 mm 10.0 mm 12.0 mm 14.0 mm 16.0 mm 18.5 mm 20.0 mm 24.0 mm 30.0 mm

Material number	thread diameter	size	drive size	total nut height	standard type	Packaging	Quantity
10007765	6.0 mm	M6	10 mm	6.0 mm	DIN	STD 1000
10007772	8.0 mm	M8	13 mm	8.0 mm	DIN	STD 1000
10007778	10.0 mm	M10	17 mm	10.0 mm	DIN	STD 500
10007788	12.0 mm	M12	19 mm	12.0 mm	DIN	STD 200
10007791	14.0 mm	M14	22 mm	14.0 mm	DIN	STD 200
10007794	16.0 mm	M16	24 mm	16.0 mm	DIN	STD 200
10007797	18.0 mm	M18	27 mm	18.5 mm	DIN	STD 100
10007800	20.0 mm	M20	30 mm	20.0 mm	DIN	STD 100
10007808	24.0 mm	M24	36 mm	24.0 mm	DIN	STD 50
10007814	30.0 mm	M30	46 mm	30.0 mm	DIN	STD 25
